3.5 Drive unit

The fresh brew unit [1] is driven by drive unit [2] with a 24Vdc motor 5 RPM [2.1]. On the output
shaft is a plastic connector [2.3] which drives the fresh brew unit [1]. A micro switch [2.5] controls the
position of the fresh brew unit.
The micro switch [2.5] detects if the fresh brew unit has started to turn after a coffee has been
selected or afterwards returned to its home position (home) position. An error E4 or E5 will occur when
something wrong is with one of the two detection positions.

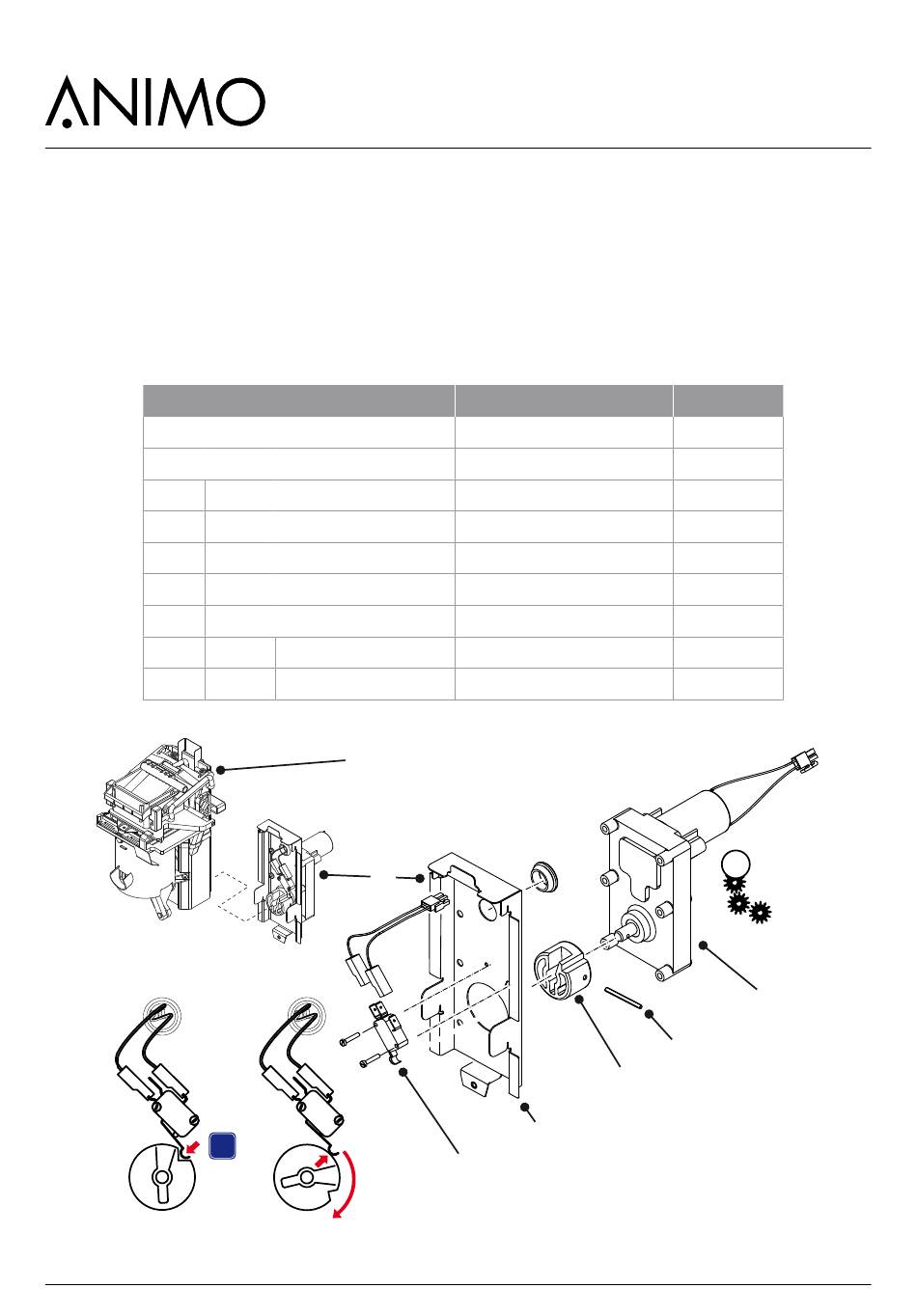

Major parts
1. Brewer unit
2. Drive unit
2.1 Motor + gear
2.2 Shear pin
2.3 Drive connector
2.4 Motor bracket
2.5 Microswitch
P
A
A
Position A
Position B
1
2
B
M
Technical data
P
See chapter 3.4
art.no. 1002149
B
24Vdc / 5 RPM
art.no. 03341
art.no. 03340
art.no. 03321
brewer in start position
brewer is 'running'
2.4
2.5
38
OptiFresh (Bean) Touch
Material
alu
steel
nylon
st.st.
M
2.1
2.2
2.3
