Animo OptiBean Manual

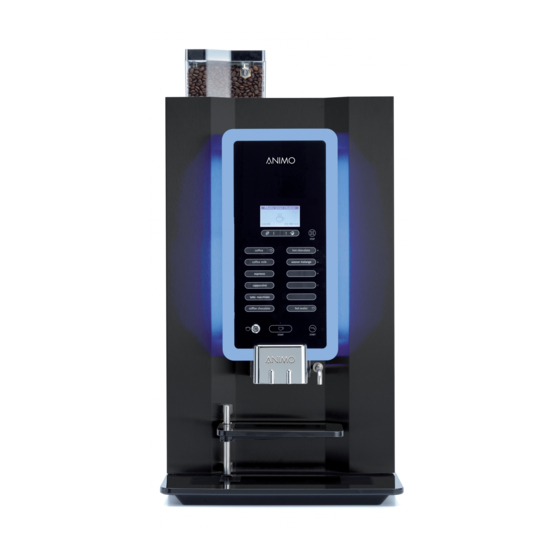

OptiBean (XL)

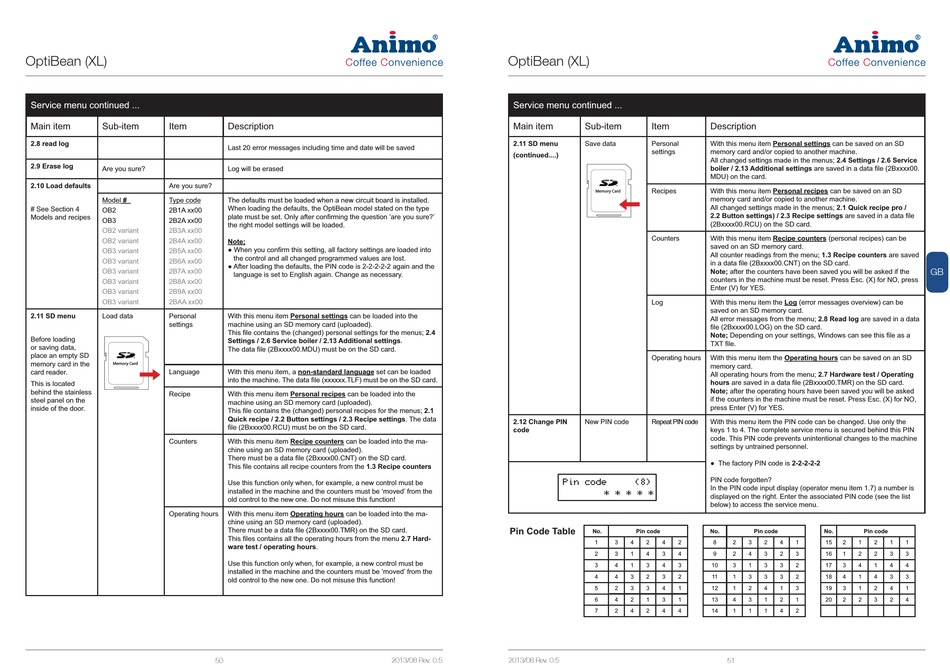

Service menu continued ...
Main item Sub-item Item
2.8 read log
2.9 Erase log
Are you sure?
2.10 Load defaults Are you sure?
Model # Type code
# See Section 4
OB2 2B1A xx00
Models and recipes
OB3 2B2A xx00
OB2 variant 2B3A xx00
OB2 variant 2B4A xx00
OB3 variant 2B5A xx00
OB3 variant 2B6A xx00
OB3 variant 2B7A xx00
OB3 variant 2B8A xx00
OB3 variant 2B9A xx00
OB3 variant 2BAA xx00
2.11 SD menu Load data Personal
settings
Before loading
or saving data,
place an empty SD
memory card in the
Memory Card
Language
card reader.
This is located
behind the stainless
Recipe
steel panel on the
inside of the door.
Counters
Operating hours
Description
Last 20 error messages including time and date will be saved
Log will be erased
The defaults must be loaded when a new circuit board is installed.
When loading the defaults, the OptiBean model stated on the type
plate must be set. Only after con¿ rming the question 'are you sure?'
the right model settings will be loaded.
Note;
When you con¿ rm this setting, all factory settings are loaded into
the control and all changed programmed values are lost.
After loading the defaults, the PIN code is 2-2-2-2-2 again and the
language is set to English again. Change as necessary.
With this menu item Personal settings can be loaded into the
machine using an SD memory card (uploaded).
This ¿ le contains the (changed) personal settings for the menus; 2.4
Settings / 2.6 Service boiler / 2.13 Additional settings.
The data ¿ le (2Bxxxx00.MDU) must be on the SD card.
With this menu item, a non-standard language set can be loaded
into the machine. The data ¿ le (xxxxxx.TLF) must be on the SD card.
With this menu item Personal recipes can be loaded into the
machine using an SD memory card (uploaded).
This ¿ le contains the (changed) personal recipes for the menus; 2.1
Quick recipe / 2.2 Button settings / 2.3 Recipe settings. The data
¿ le (2Bxxxx00.RCU) must be on the SD card.
With this menu item Recipe counters can be loaded into the ma-
chine using an SD memory card (uploaded).
There must be a data ¿ le (2Bxxxx00.CNT) on the SD card.
This ¿ le contains all recipe counters from the 1.3 Recipe counters
Use this function only when, for example, a new control must be
installed in the machine and the counters must be 'moved' from the
old control to the new one. Do not misuse this function!
With this menu item Operating hours can be loaded into the ma-
chine using an SD memory card (uploaded).
There must be a data ¿ le (2Bxxxx00.TMR) on the SD card.
This ¿ les contains all the operating hours from the menu 2.7 Hard-
ware test / operating hours.
Use this function only when, for example, a new control must be
installed in the machine and the counters must be 'moved' from the
old control to the new one. Do not misuse this function!
50 2013/08 Rev. 0.5
OptiBean (XL)
Service menu continued ...
Main item Sub-item Item
2.11 SD menu Save data Personal
settings
(continued....)
Recipes
Memory Card
Counters
Log
Operating hours
2.12 Change PIN New PIN code Repeat PIN code
code
1JO DPEF
Pin Code Table
No. Pin code
1 3 4 2 4 2
2 3 1 4 3 4
3 4 1 3 4 3
4 4 3 2 3 2
5 2 3 3 4 1
6 4 2 1 3 1
7 2 4 2 4 4
2013/08 Rev. 0.5
Description
With this menu item Personal settings can be saved on an SD
memory card and/or copied to another machine.
All changed settings made in the menus; 2.4 Settings / 2.6 Service
boiler / 2.13 Additional settings are saved in a data ¿ le (2Bxxxx00.
MDU) on the card.
With this menu item Personal recipes can be saved on an SD
memory card and/or copied to another machine.
All changed settings made in the menus; 2.1 Quick recipe pro /
2.2 Button settings) / 2.3 Recipe settings are saved in a data ¿ le
(2Bxxxx00.RCU) on the SD card.
With this menu item Recipe counters (personal recipes) can be
saved on an SD memory card.
All counter readings from the menu; 1.3 Recipe counters are saved
in a data ¿ le (2Bxxxx00.CNT) on the SD card.
Note; after the counters have been saved you will be asked if the
counters in the machine must be reset. Press Esc. (X) for NO, press
Enter (V) for YES.
With this menu item the Log (error messages overview) can be
saved on an SD memory card.
All error messages from the menu; 2.8 Read log are saved in a data
¿ le (2Bxxxx00.LOG) on the SD card.
Note; Depending on your settings, Windows can see this ¿ le as a
TXT ¿ le.
With this menu item the Operating hours can be saved on an SD
memory card.
All operating hours from the menu; 2.7 Hardware test / Operating
hours are saved in a data ¿ le (2Bxxxx00.TMR) on the SD card.
Note; after the operating hours have been saved you will be asked
if the counters in the machine must be reset. Press Esc. (X) for NO,
press Enter (V) for YES.
With this menu item the PIN code can be changed. Use only the
keys 1 to 4. The complete service menu is secured behind this PIN
code. This PIN code prevents unintentional changes to the machine
settings by untrained personnel.
The factory PIN code is 2-2-2-2-2
PIN code forgotten?
In the PIN code input display (operator menu item 1.7) a number is
displayed on the right. Enter the associated PIN code (see the list
below) to access the service menu.
No. Pin code No. Pin code
8 2 3 2 4 1 15 2 1 2
9 2 4 3 2 3 16 1 2 2
10 3 1 3 3 2 17 3 4 1
11 1 3 3 3 2 18 4 1 4
12 1 2 4 1 3 19 3 1 2
13 4 3 1 2 1 20 2 2 3
14 1 1 1 4 2
51
GB
1 1
3 3
4 4
3 3
4 1
2 4
