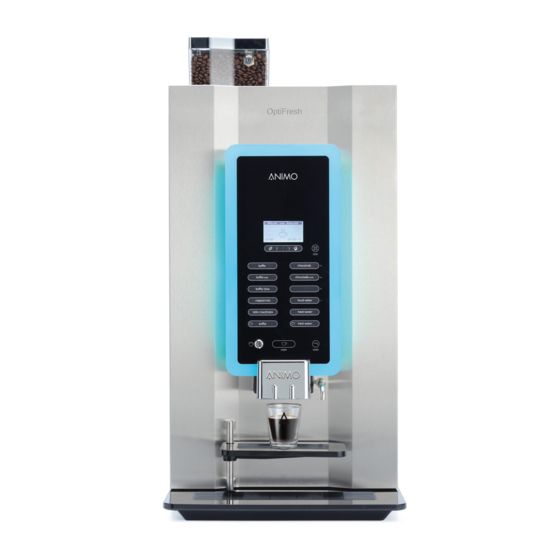

Animo OptiFresh Bean User Manual

Hide thumbs Also See for OptiFresh Bean:
Table of Contents

Advertisement

Quick Links

See also: Service Book
/i
gebruiksaanwijzing
brugsanvisning
user manual
brukerhåndbok
betriebsanleitung
användarhandböck
mode d'emploi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OptiFresh Bean and is the answer not in the manual?

Questions and answers

Related Manuals for Animo OptiFresh Bean

Summary of Contents for Animo OptiFresh Bean

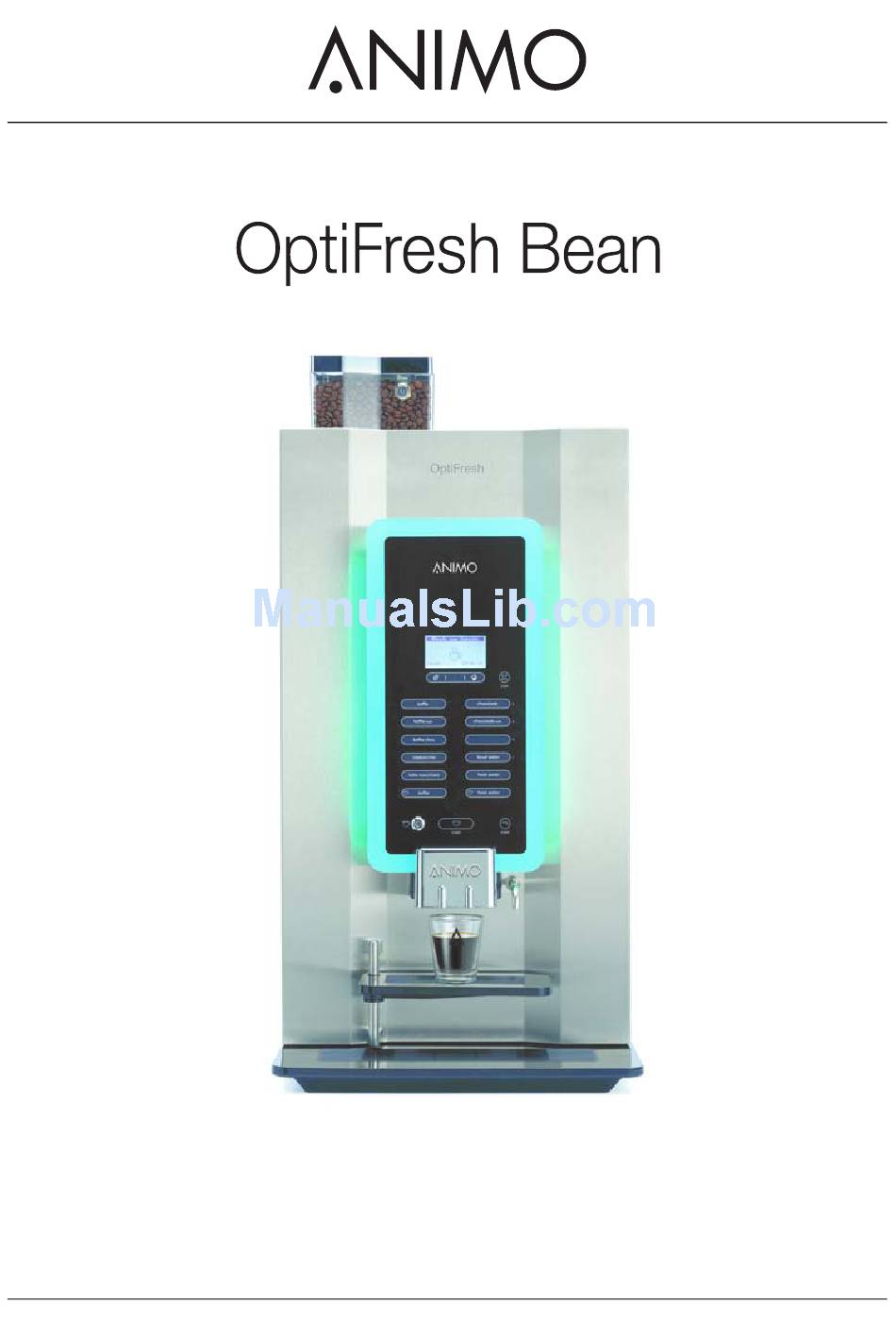

  • Page 1 gebruiksaanwijzing brugsanvisning user manual brukerhåndbok betriebsanleitung användarhandböck mode d’emploi...

  • Page 2: Copyright

    This also applies to the corresponding diagrams and/or charts. Animo retains the right to alter parts at any given time without prior or immediate announcement to the consumer. The content of this manual can also be changed without any prior warning. This manual is valid for the standard model of the device.

  • Page 3: Table Of Contents

    OptiFresh Bean TABLE OF CONTENTS Copyright ..........................45 Safety ............................47 Important information ....................... 47 Warning signs ........................47 Intended use ........................48 Modifications ........................48 Safety devices ........................49 Safety precautions ......................51 Users ..........................52 Directives .......................... 53 Guarantee ........................

  • Page 4: Safety

    OptiFresh Bean Safety Important information This user manual is intended to help you operate this machine safely and effectively. This manual gives information about installation, operation and maintenance of the equipment. Make sure to read and understand the manual before use.

  • Page 5: Intended Use

    WARNING Make sure the main switch and operating button are freely accessible. Animo is always willing to discuss improving the value of its machines to users by means of modifications or alterations. Refer to ‘Further help and information’. 2015/02 Rev. 1.0...

  • Page 6: Safety Devices

    OptiFresh Bean Safety devices 1.5.1 Door switch The door switch (A) automatically switches off the machine when the door is opened. 1.5.2 Temperature safety device The temperature safety device turns off the heating element if the temperature is too high. It prevents the machine from boiling dry.
  • Page 7 OptiFresh Bean 1.5.3 On/Off switch The on/off switch (A) puts the machine in the on/off position. The machine can still be charged after the machine is switched off. Unplug the machine to make sure that the machine is entirely uncharged.

  • Page 8: Safety Precautions

    General safety precautions • Make sure that the environment around the machine is dry, clean and lit sufficiently well; • Keep away from moving parts; • Use Animo replacement parts only. • Use Animo recommended products only. 1.6.2 During installation •...

  • Page 9: Users

    OptiFresh Bean • Make sure that the repairs are performed by trained and authorised personnel only. • Unplug the machine to perform maintenance regarding error messages. WARNING To entirely uncharge the machine, unplug the machine. 1.6.5 Replacement instructions • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 10: Directives

    1.11 Further help and information Animo is committed to provide the highest level of support to users and operators of its products. Contact the dealer for information regarding settings, maintenance and repair work, which is not included in this document.

  • Page 11: Description

    OptiFresh Bean Description Overview 2.1.1 Front A: Bean canister B: Control panel C: Outlet D: Tray E: Drip tray F: Water outlet G: Door lock H: OptiLight 2015/02 Rev. 1.0...
  • Page 12 OptiFresh Bean 2.1.2 Back A: Fan B: Water connection C: Power cord D: Temperature safety device 2015/02 Rev. 1.0...
  • Page 13 OptiFresh Bean 2.1.3 Inside A: Grinder B: Canisters C: Mixer D: On/off switch E: Brewer F: Waste bin G: Outlet H: Control panel Cleaning instructions stickers 2015/02 Rev. 1.0...

  • Page 14: Working Principle

    OptiFresh Bean Working principle 2.2.1 Canisters The canisters contain the coffee beans (A) and instant products (B). 2.2.2 Grinder The grinder (A) grinds the coffee beans and transfers the product to the brewer. 2015/02 Rev. 1.0...
  • Page 15 OptiFresh Bean 2.2.3 Brewer The brewer (A) receives the product from the grinder. The product is made by vacuuming hot water through the filter. The brewer piston transfers the product to the outlet. A wiper transfers the residue to the waste bin.

  • Page 16: Specifications

    OptiFresh Bean 2.2.5 Outlet The outlet (A) transfers the product into the cup or jug. Specifications 2.3.1 Standard machine Item Specification Machine dimensions 402 x 570 x 860 mm Weight: empty/full 35/45 kg Pressure 2-10 bar Water inlet temperature 5-60 °C Water hardness >...
  • Page 17 OptiFresh Bean Item Specification Operating mode with dispensing (ECPL) 105 Wh/Litre Standby (ESM) 0 Wh Heat up from standby (HU-ESM) 150 Wh 2.3.4 Capacities - Coffee Item Specification Hour capacity per cup of 120 ml 125 cups Preparation time per cup of 120 ml...

  • Page 18: Display

    OptiFresh Bean D: Machine number E: Power [W] F: Frequency [Hz] Display 2.4.1 Main Screen A: Product name area B: Instruction/Message area C: Strength icon 2.4.2 Display icons Icon Name Description Rinsing The machine is rinsing. The machine must be rinsed.

  • Page 19: Configuration Menu

    OptiFresh Bean Icon Name Description Drip Tray Full The drip tray is full. Error The machine generated an error. Standby The machine is on standby. Cleaning The machine must be cleaned. Replace brewer filter The brewer filter must be replaced.
  • Page 20 OptiFresh Bean 2.5.4 Switching times Screen Item Description 1.2.0 Mo-Fri To set the on and off time from Mondays until Fridays [hour:min] 00:00 = not active. There are 3 switching times available. 1.2.1 To set the on and off time on Saturdays [hour:min]. 00:00 = not active.

  • Page 21: Energy Safe Mode

    OptiFresh Bean Screen Item Description 1.8.3 Random To show all colours of the complete colour spectrum [0-60 min]. 0 = not active. 2.5.10 Contrast Screen Item Description Contrast To set the contrast of the display [0-100%]. Energy safe mode The machine in energy safe mode uses less energy. The recipe buttons are still active and the boiler cools down in steps of 5 °C.
  • Page 22 OptiFresh Bean Energy safe mode with three set switching times Energy safe mode without switching times If the machine is switched on and there is no dispensing, the machine will be in energy safe mode after 30 min. The temperature of the boiler drops every 30 min. with 5 °C. If there is dispensing after 2 hours the machine is reactivated.

  • Page 23: Transport & Installation

    OptiFresh Bean Transport & Installation Transport 3.1.1 General When the machine and its additional equipment is delivered: • Check the machine for possible transport damage. • Make sure the delivery is complete. Refer to the sales and delivery conditions. Installation Caution •...
  • Page 24 OptiFresh Bean 3.2.2 Positioning Place the machine at work top on a firm, flat surface. If available, place the machine on a base cabinet. Make sure that the area on the left of the machine is at least 11 cm to open the door.
  • Page 25 OptiFresh Bean If necessary, connect the machine (A) with the hose (B) to the stand-alone pump set (C). Make sure that the minimal water pressure is not below 2 bar (at 5 l/min flow pressure). 3.2.4 Electrical connection The machine is provided with an electrically suitable plug as advised and provided by the installer.
  • Page 26 OptiFresh Bean 3.2.6 Applying the recipe strips Open the machine door. Remove the screws and remove the cover (A). Insert the recipe strip (B). 3.2.7 Applying the ingredient stickers Open the machine door. Place the stickers as shown (A & B).
  • Page 27 OptiFresh Bean Use the recipe buttons (B) to navigate through the menu. Select clock to set the time and date. Select switching time / energy save mode to set the mode. Select OptiLight to set the colour setting. 3.2.9 Using the machine for the first time Plug the machine into an earthed socket.

  • Page 28: Operation

    OptiFresh Bean Operation WARNING • Inspect the machine for damage before use. • Do not submerge or hose down the machine. • Do not use sharp objects to operate the buttons. • Keep the operating controls free of dirt. •...

  • Page 29: Overview Control Panel (Inside)

    OptiFresh Bean Overview control panel (inside) A: Standby button B: Configuration menu button C: Cleaning button D: Rinsing button E: Brewer open / close button Opening the door Place the key in the door lock (A). Turn the key and open the machine door.

  • Page 30: Switching On And Off

    OptiFresh Bean Switching on and off Open the machine door. Press the on/off switch (A) to switch the machine on or off. Start dispensing cups Place a cup on the tray. Press a recipe or press the hot water button. The dispensing LED starts to flash.

  • Page 31: Stop Dispensing Cups Or Jugs

    OptiFresh Bean Stop dispensing cups or jugs Press the stop button. Caution Do not pull away a cup or jug. A running cycle will still have to be finished first. Filling the bean canister If required, unlock the cover of the bean canister.

  • Page 32: Using The Coin Mechanism (Optional)

    OptiFresh Bean Remove the cover (C). Fill the instant canister. Make sure that you do not overfill the instant canister. Replace the cover. Replace the canister into the socket. Make sure the canister locks into place with the pin in the hole.

  • Page 33: Maintenance

    Maintenance Cleaning and disinfecting detergents WARNING • Do not use other chemicals unless it is approved by Animo. • Do not put the machine parts in a dishwasher except for the instant canister. • Dry the canister thoroughly before replacing it.
  • Page 34 OptiFresh Bean 5.2.4 Using the rinsing program Open the machine door. Press the rinsing button (A) from the control panel on the inside of the machine. Close the machine door. Place a bowl (min. 1.5 l) under the outlet. Follow the instructions on the display.
  • Page 35 OptiFresh Bean 10 Remove and clean the coffee outlet (E). 11 Make sure the wiper (F) is centered. The wiper should be in between the two arms (G). 12 Replace the brewer chamber. Make sure the brewer chamber is connected to its place.
  • Page 36 OptiFresh Bean Replace a clean filter (A). Make sure the filter is locked to its place (B). 10 Make sure the wiper (F) is centered. The wiper should be in between the two arms (G). 11 Replace the brewer chamber. Make sure the brewer chamber is connected to its place.
  • Page 37 OptiFresh Bean 5.2.9 Cleaning/Emptying the drip trays Remove the drip trays (A) under the machine. If required, remove the drip tray hose. Clean the drip trays. Replace the drip tray hose. Replace the drip trays. 5.2.10 Cleaning the mixer Turn the canister’s outlet upwards.
  • Page 38 OptiFresh Bean 12 Replace the mounting ring and turn it clockwise to lock the ring into place. 13 Replace the mixer fan. Make sure that the mixer fan locks into place. The mixer fan must not touch the green mounting ring.
  • Page 39 OptiFresh Bean Replace the bean canister (B). Replace the cover (C). Open the supply (A) to the grinder. 5.2.12 Cleaning the instant canisters Open the machine door. Turn the canister’s outlet upwards (A). Lift the canister from the socket and pull it out (B).
  • Page 40 OptiFresh Bean Clean the instant canister and its parts. Dry the parts thoroughly. Replace the cover. Replace the canister into the socket. Make sure the canister locks into place with the pin (D) in the hole. 10 Turn the canister’s outlet (A) downwards.
  • Page 41 OptiFresh Bean Take out the drink outlets (C) from the front piece of the outlet arm (D). Remove the front piece from the outlet arm (F). Clean the parts. 10 Replace the outlet hoses. 2015/02 Rev. 1.0...

  • Page 42: Troubleshooting

    OptiFresh Bean Troubleshooting Error messages Problem Possible cause Correction E1 Level error Sensor level problem. Contact the dealer or service engineer. E2 Level error Boiler is filling up too slowly. Check the water pressure. Turn There is no water pressure or the the water supply tap completely water tank is empty.
  • Page 43 OptiFresh Bean Problem Possible cause Correction E11 Ingr. m. error Ingredient motor overload/stuck. Clean the canisters. Refer to Ingredient motor outlet overload. 5.2.12. The prime mover of one of the out- Switch the machine off and on lets is not running smoothly.

  • Page 44: Display Messages

    OptiFresh Bean Display messages Problem Possible cause Correction Out of order boiler filling When used for the first time: boiler No action required. is still empty, boiler is being filled. Out of order boiler filling Boiler is not filling up or is filling up Check the water pressure.
  • Page 45 OptiFresh Bean Problem Possible cause Correction The distributor of the canister Check the distributor of the can- does not work. ister or clean the canister. Wrong ingredient. Use the correct ingredient. The ingredient is solidified Replace the ingredient. (caked). The mixer is not cleaned.
  • Page 46 Animo B.V. Dr. A. F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu 2015/02 Rev. 1.0 1002022...
