9.2 Interface / Display

The interface connects all the components located in
and on the door and is connected by a cable to the
main control.

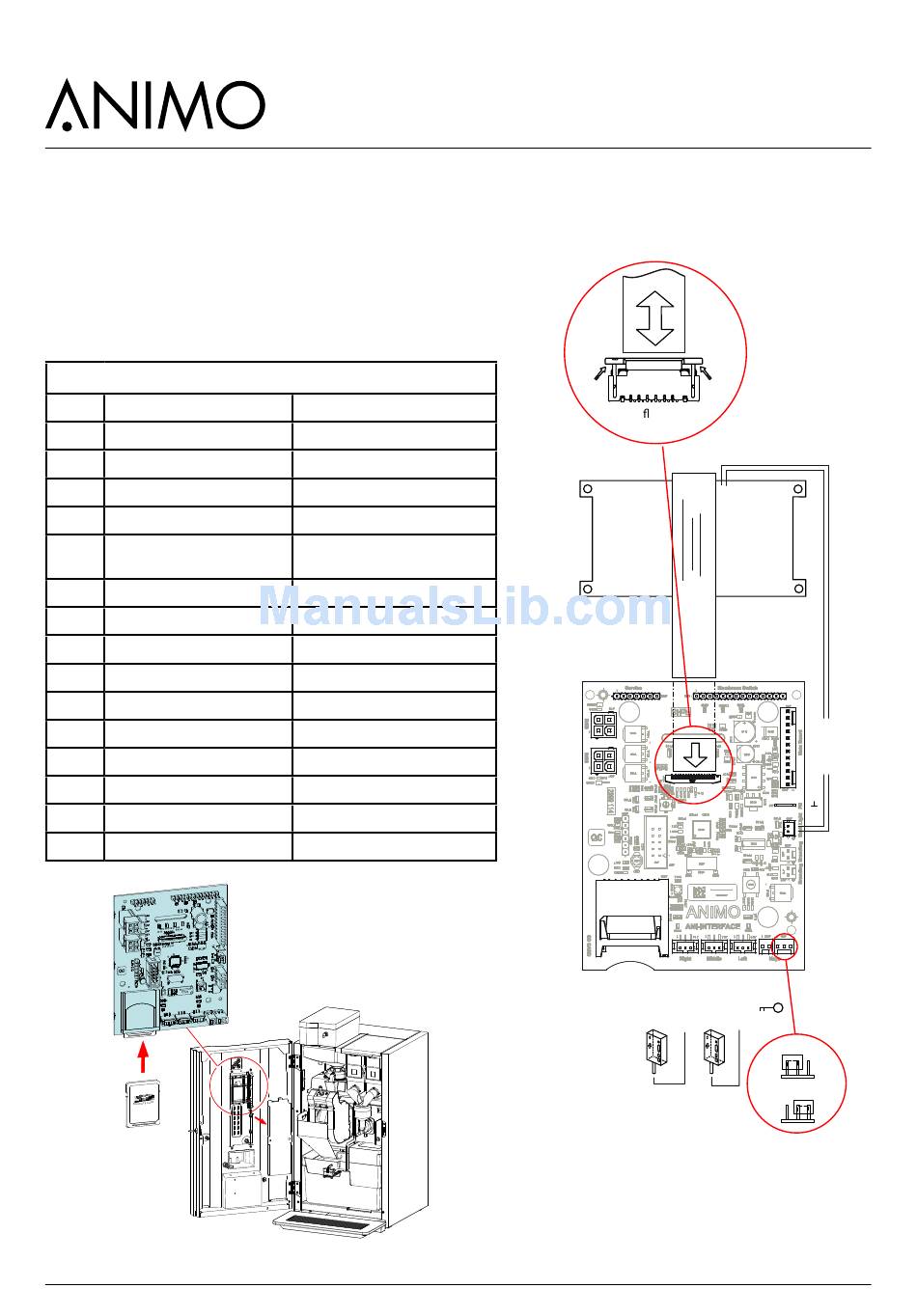

9.2.1 Connections
Interface & Display
Conn
J100 Main control
J101 Front membrane panel
J102 Service membrane panel
J103 Key switch
J104 Jumper position A-B
J105 Display connection
J106 RGB LED
J107 RGB LED
J108 -
J109 Backlight display
J110 -
J112 cup sensor left
J113 cup sensor middle
J114 cup sensor right
J200 SD card holder
Notes
A = cup sensor; no
B = cup sensor; yes
See dismantling instructions
not used
not used
coffee spout position
hot water spout position
86
OptiBean /OptiBean XL
First First
Unlock! Unlock!
LCD atcable
connector
J102 J105
Service Display Membrane
panel
J106
RGB
LED
J107
RGB
LED
J200 J114
SD CARD Cup
detc. detc.
Right
Back Light LCD
LCD
J101
Switch
J100
Main
Board
J109
Back
Light
LCD
J112 J103
Cup Key
J104
Left
Jump
A
B
