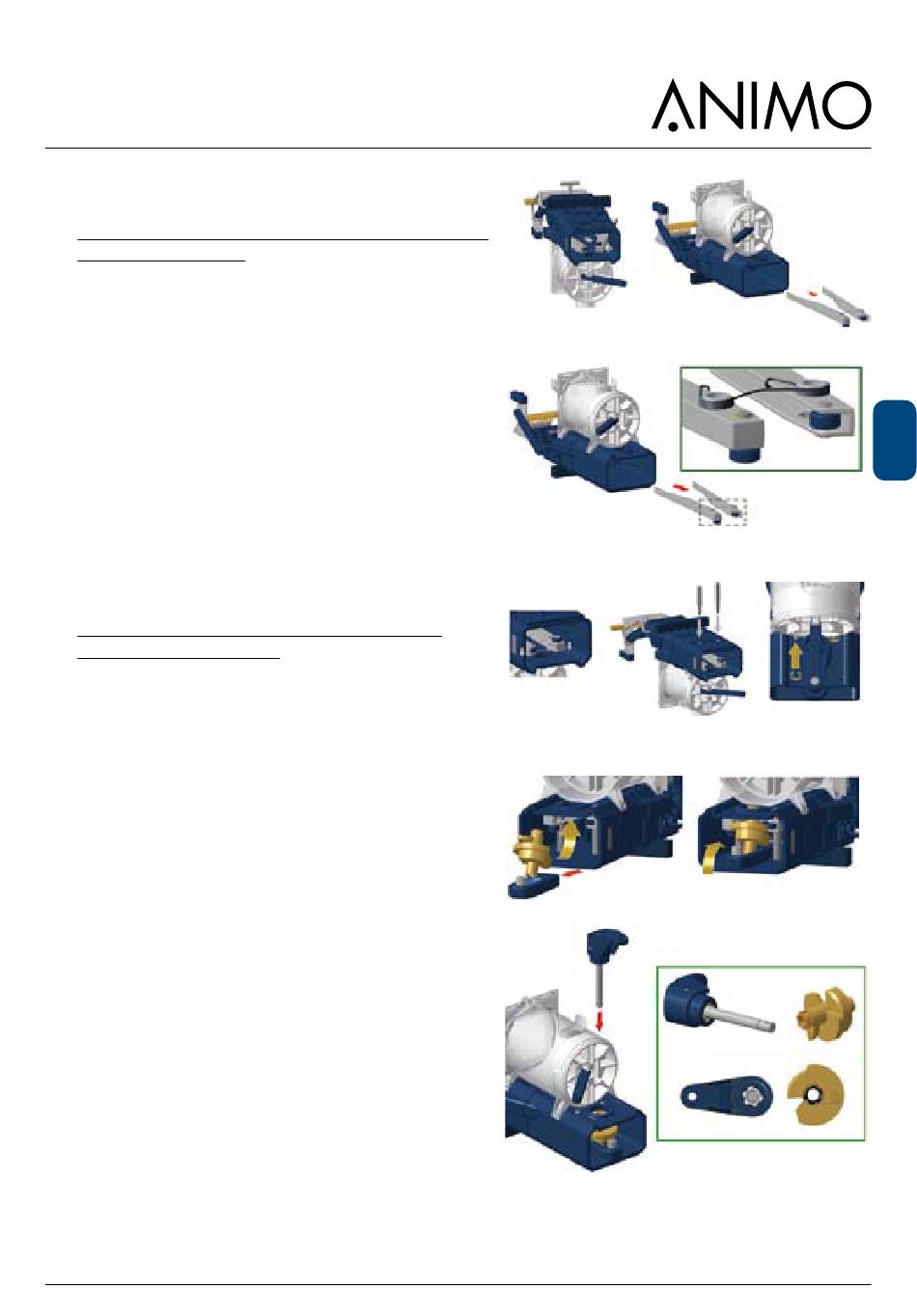

7. Pull the two arms and the large spring connected to
the arms out through the bottom of the mainframe.
At this point in the procedure, the two arms can be
completely removed.
8. Install the spring onto both of the brewer arms.
Note that the each end of the spring must be
hooked to each arm, as illustrated.
With the spring in place, slide the spring and arm
assembly into the mainframe through the bottom of
the brewer (the spring must be facing towards the
front of the brewer).
9. Move the spring and arm assembly up against the
front inner wall of the mainframe and insert the two
arm pins through the rear of the mainframe and
through the holes in each arm. At this point, the
spring should now be sandwiched in between
the arms and the wall of the mainframe. At the front
of the mainframe, insert a c-clip into each of the
arm pins to secure the pins (and arms) in place.
At this point in the procedure, the brewer arm
replacement is complete.
10. The next part of the procedure is to replace the
triple cam and T-bar housing.
Even if you were only replacing one of the two, both
of these components need to be removed.
Partially insert the bottom of the triple cam into the
opening in the T-bar housing. While keeping the
triple cam angled towards the top of the brewer,
slide the triple cam and housing into the brewer
mainframe. You need to get the top of the triple
cam resting inside the opening for the crank arm on
the mainframe, while the bottom is inside the
opening in the T-bar housing.
11. Insert the crank arm shaft through the opening in
the front of the brewer, and through the triple cam
and T-bar housing. Please note that the crank arm
needs to properly couple with the triple cam.
