HLI-PRC Addressing Scheme

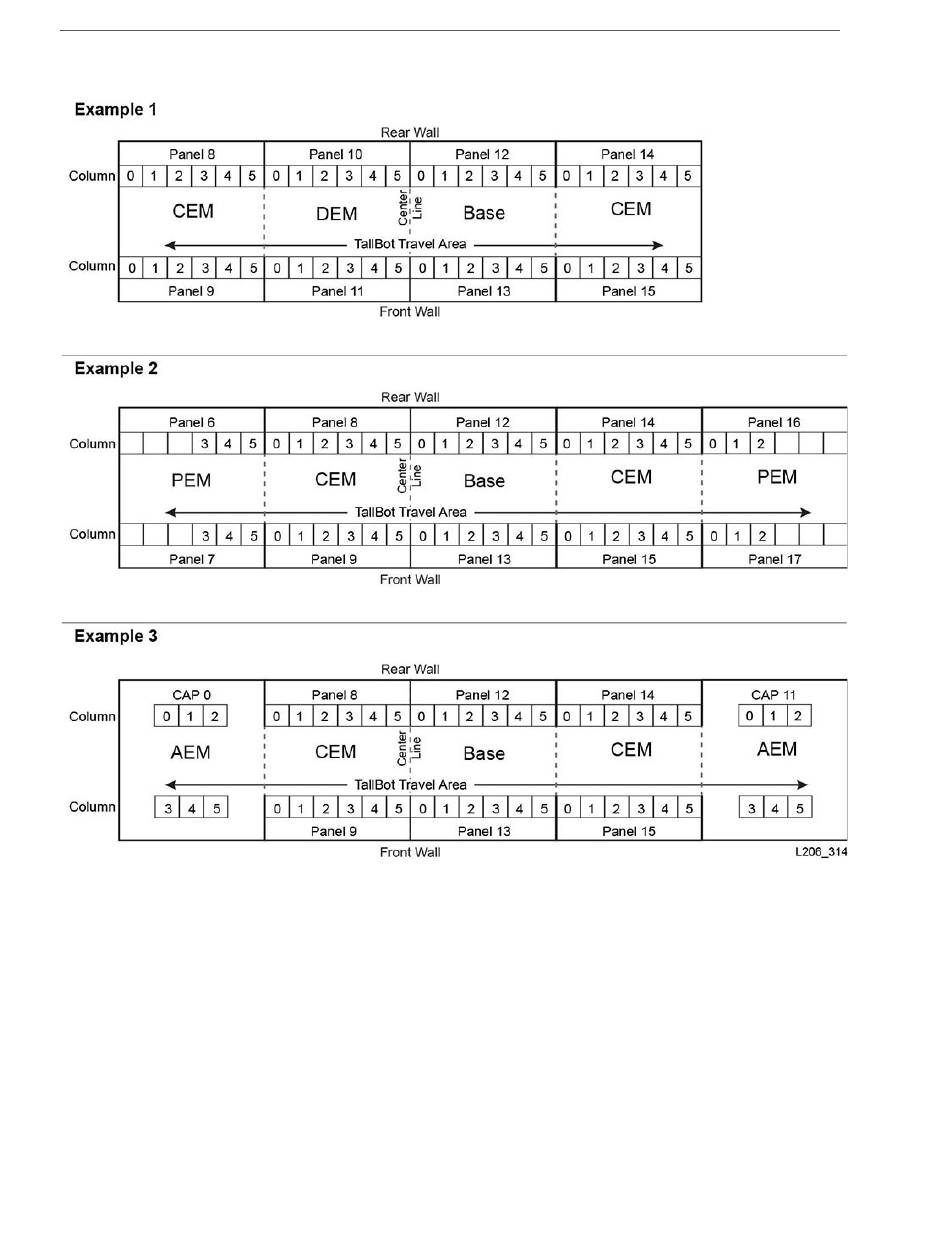

Figure E–4 HLI-PRC Panel and Column Addressing Examples (viewed from top of library)
HLI Addressing of CAPs
HLI addressing defines CAP locations with a CAP ID instead of a panel value. The
addressing is LSM, CAP ID, row, column.
Rotational CAP Addressing
■
AEM CAP Addressing
■
Rotational CAP Addressing
LSM
Always equal to 0.
CAP ID
Ranges from 1 to 10
