Internal Firmware Addressing Scheme

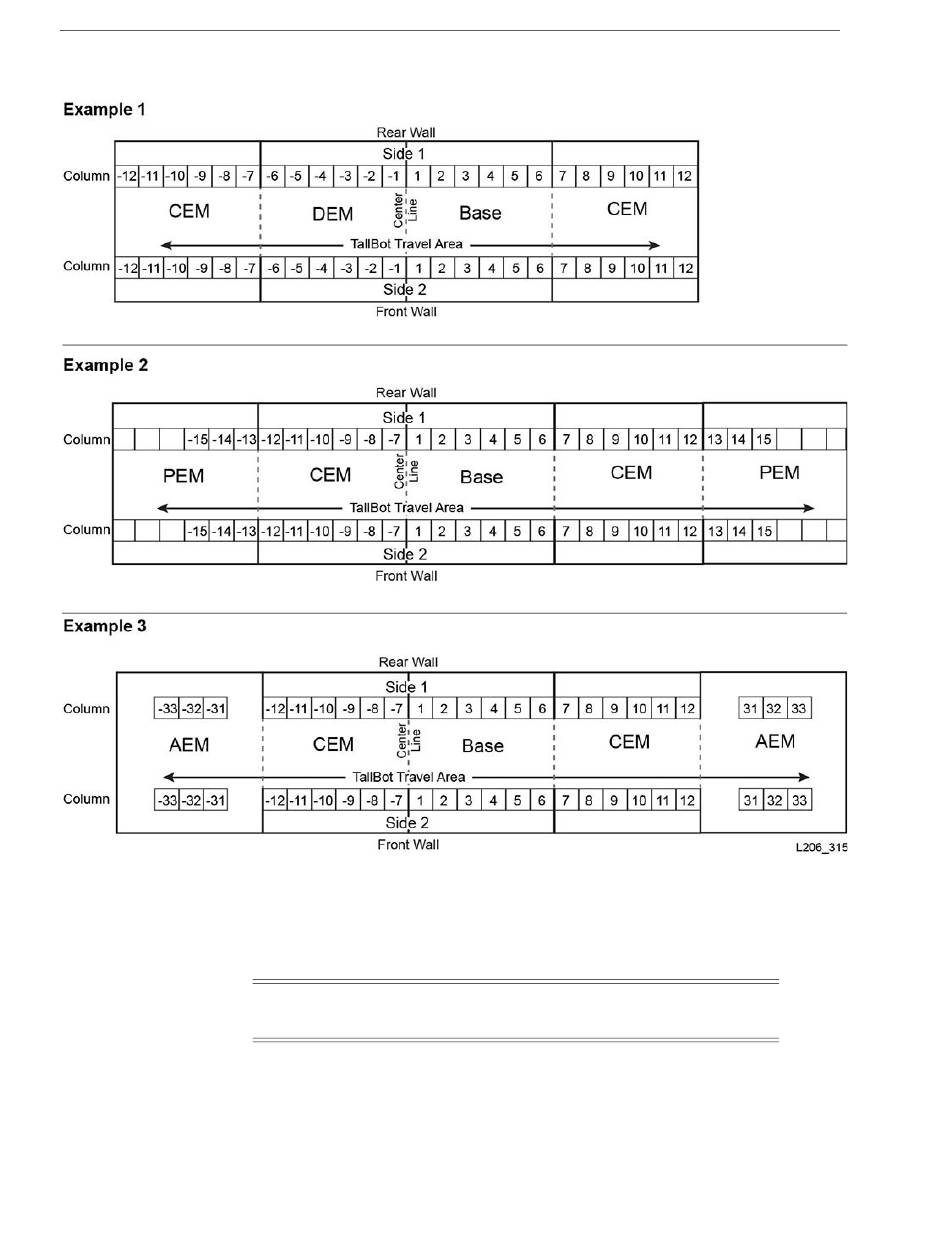

Figure E–2 Internal Firmware Side and Column Addressing Examples (viewed from top of library)
Internal Firmware Addressing of Tape Drives
The firmware addressing (library, rail, column, side, row) distinguishes a drive based
on column and row. The library, rail, and side values are always equal to 1.
E-4 StorageTek SL3000 Library Guide
The perspective in
Note:
the library.
Figure E–3
is from the drive-side (rear) of
