3.11

GX Works2 (FX-CPU) Telegram 102 example

This chapter describes running the inverter through the A8NDPV1 Profibus option card using
GX Works 2 (version 1.501X or newer) with a FXCPU and FX3U-64DP-M Profibus Master.

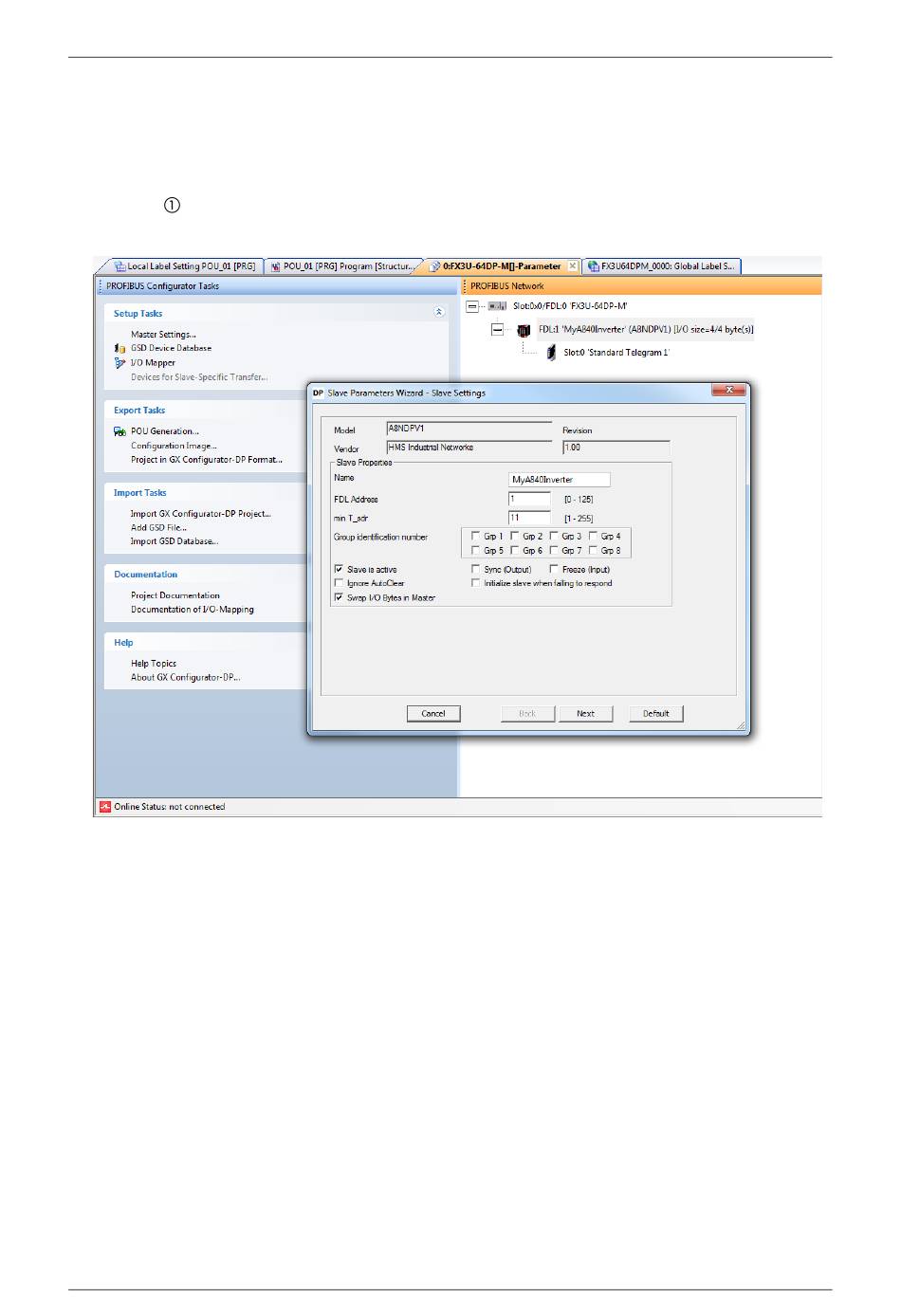

Enter the Profibus Configurator and double click on the inverter to bring up the Slave Param-
eters Wizard. Click Next to proceed.
A8NDPV1 PROFIBUS Option Board
GX Works2 (FX-CPU) Telegram 102 example
77
