Get Started

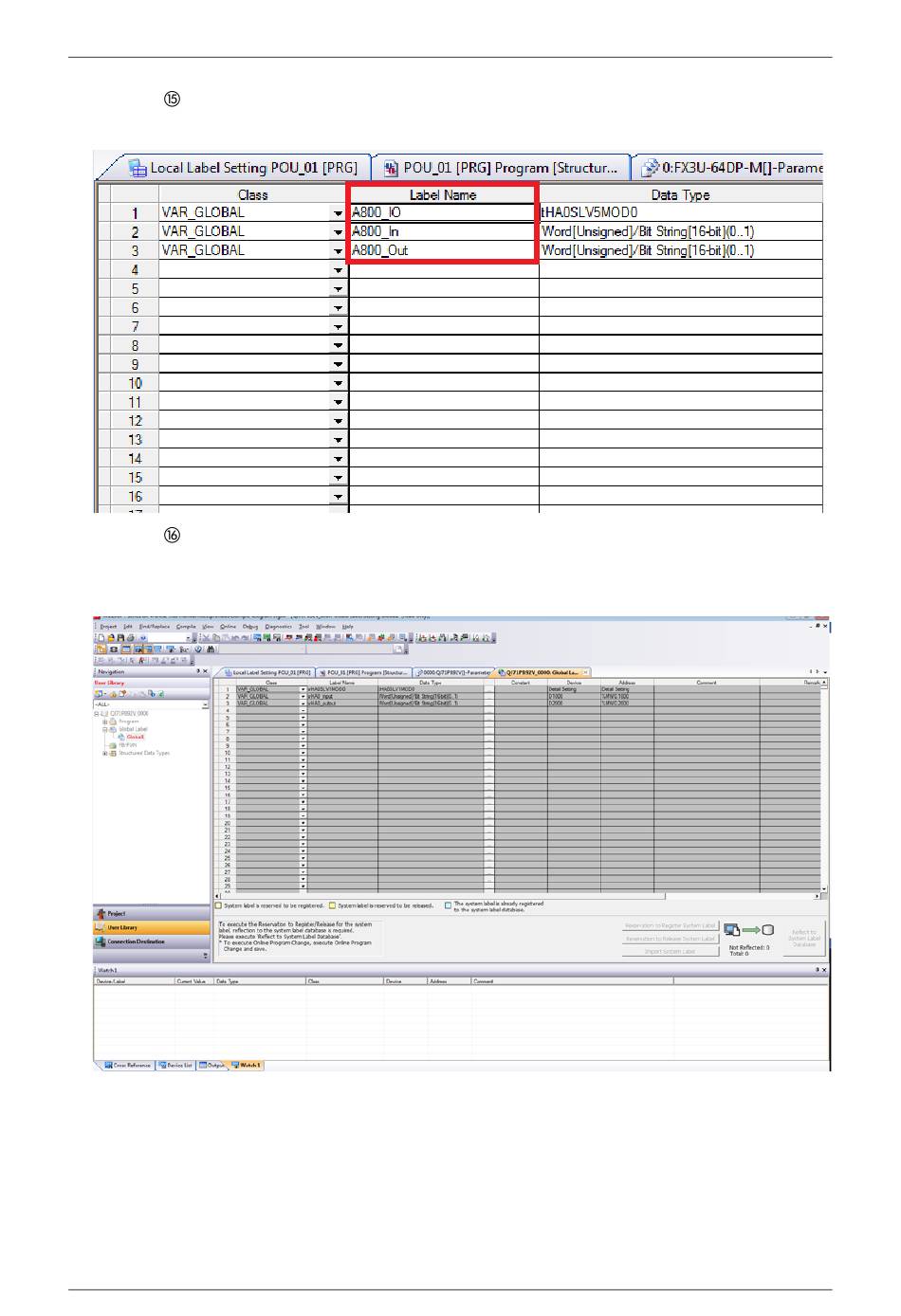

Enter the global label definition file and modify the label names to your liking. To allow easy
following of this tutorial, please use the names like on the screenshot below:
The data is defined as follows :
– For A800_In: [0] = ZSW1, [1] = NIST_A.
– For A800_Out: [0] = STW1, [1] = NSOLL_A.
A8NDPV1 PROFIBUS Option Board
GX Works2 (FX-CPU) Telegram 1 example
73
