GX Works2 (FX-CPU) Telegram 1 example

This chapter describes running the inverter through the A8NDPV1 Profibus option card using
GX Works 2 (version 1.501X or newer) with a FXCPU and FX3U-64DP-M Profibus Master. GX Con-
figurator DP 7.10L or newer is required to perform the setup.

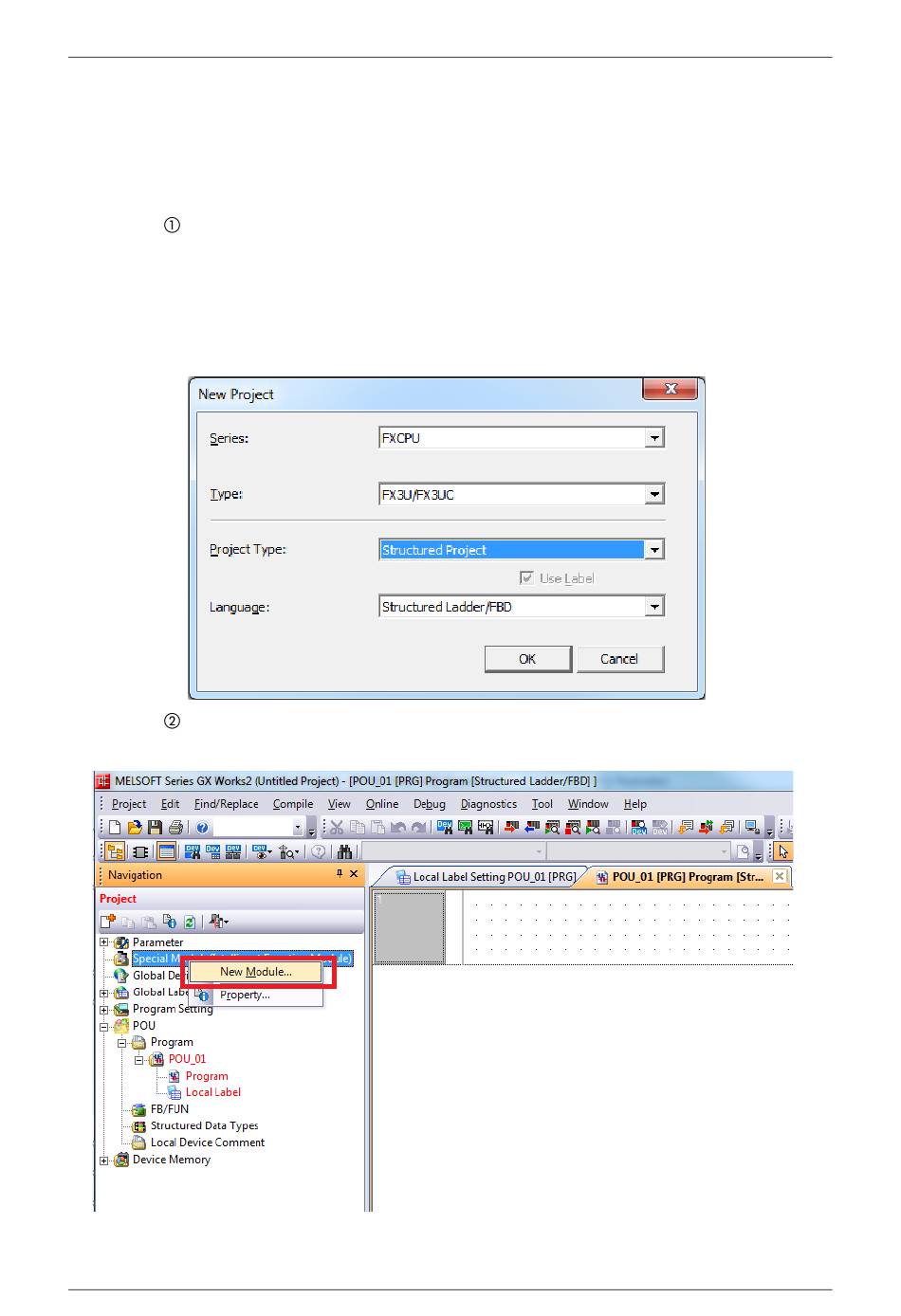

Start with a new project.
Select:
– Series: FXCPU;
– PLC type: Select the cpu;
– Project type: Structured project;
– Language: Structured Ladder/FBD.
Add a new Special Module (Intelligent Function Module) from the menu on the left (right click
and select new):
A8NDPV1 PROFIBUS Option Board
