Get Started

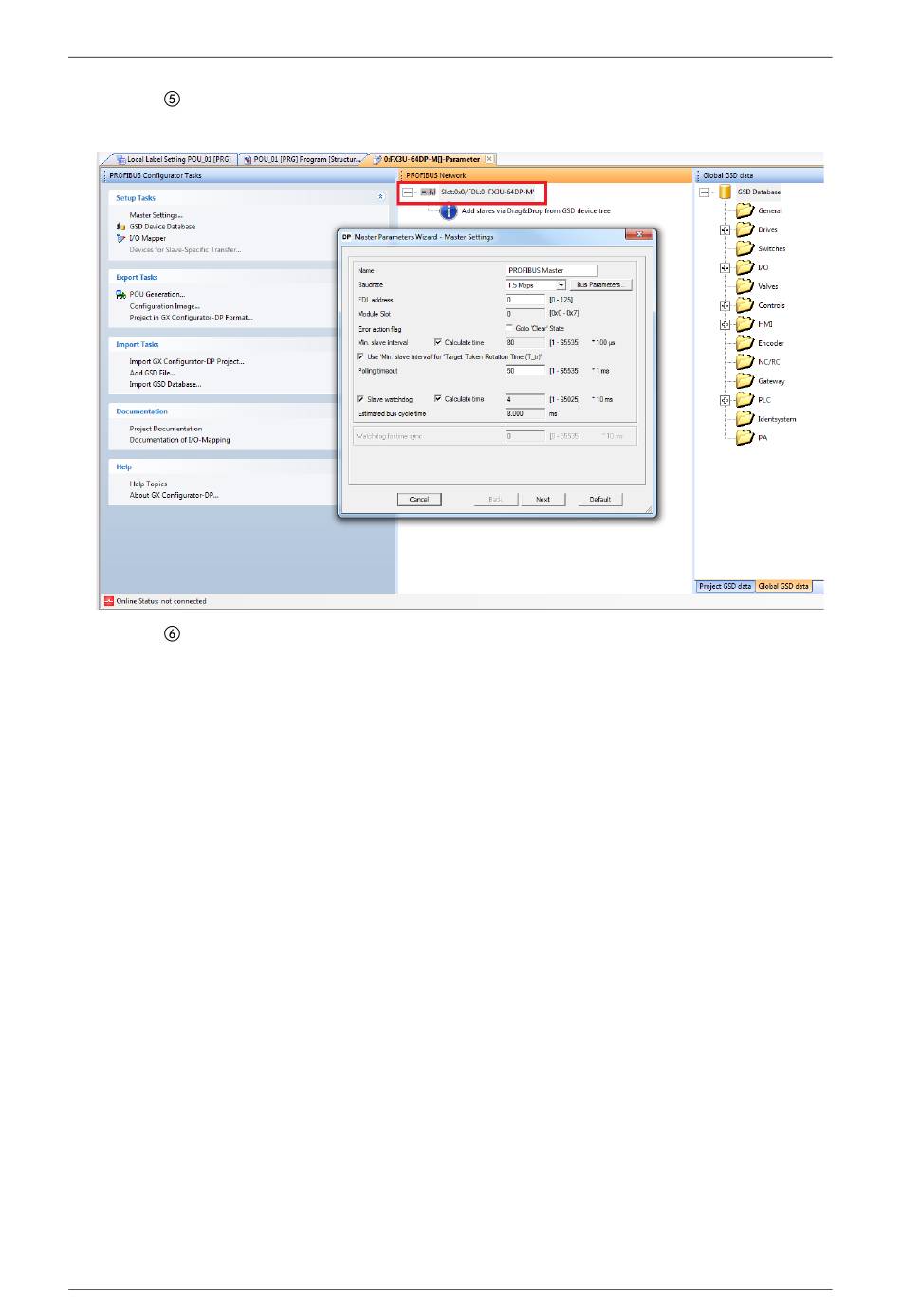

First setup the Profibus Master. Double click on the master module (in the screenshot visible
as "Slot:0x0/FDL:0 'FX3U-64DP-M". This will bring up the "Master Parameters Wizard".
It is possible to change the Baudrate, FDL address and other settings as needed. For this tuto-
rial these settings will not be changed. Click Next to proceed.
A8NDPV1 PROFIBUS Option Board
GX Works2 (FX-CPU) Telegram 1 example
67
