Installation Procedure
Put the included studs in the holes at the right top and left bottom corners of the PCB.

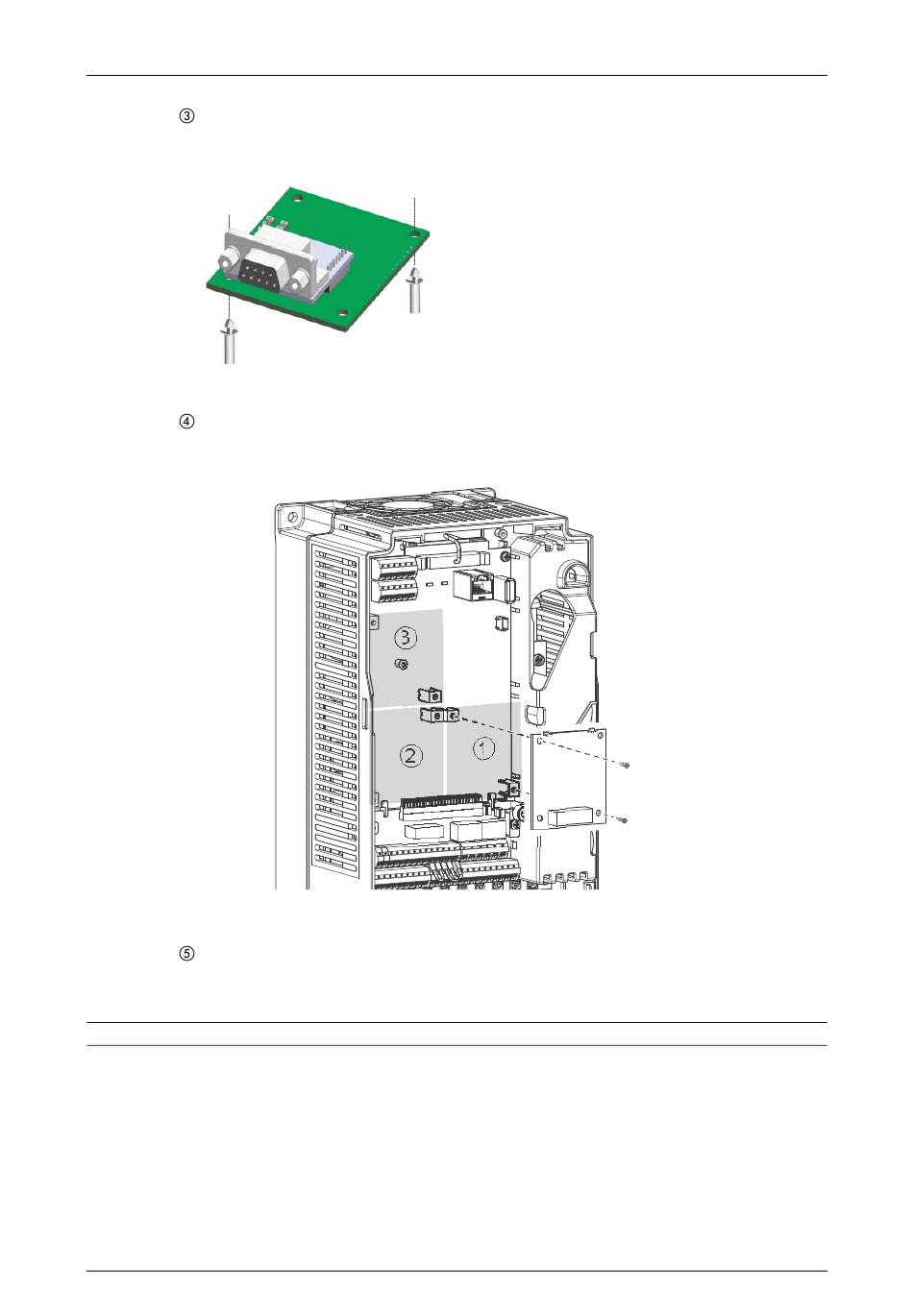

Position the A8NDPV1 PROFIBUS Option Board at the option slot 1 as shown in the image. This
is the only position that will allow network connectivity.
Fasten the option board by tightening the included screws at the left top and right bottom
corners. The PE plate is attached along with the screw in the right bottom corner.
Note: Over-tightening the screws will damage the board.
