GX Works2 (Q-CPU) Simple Ladder Telegram 1 example

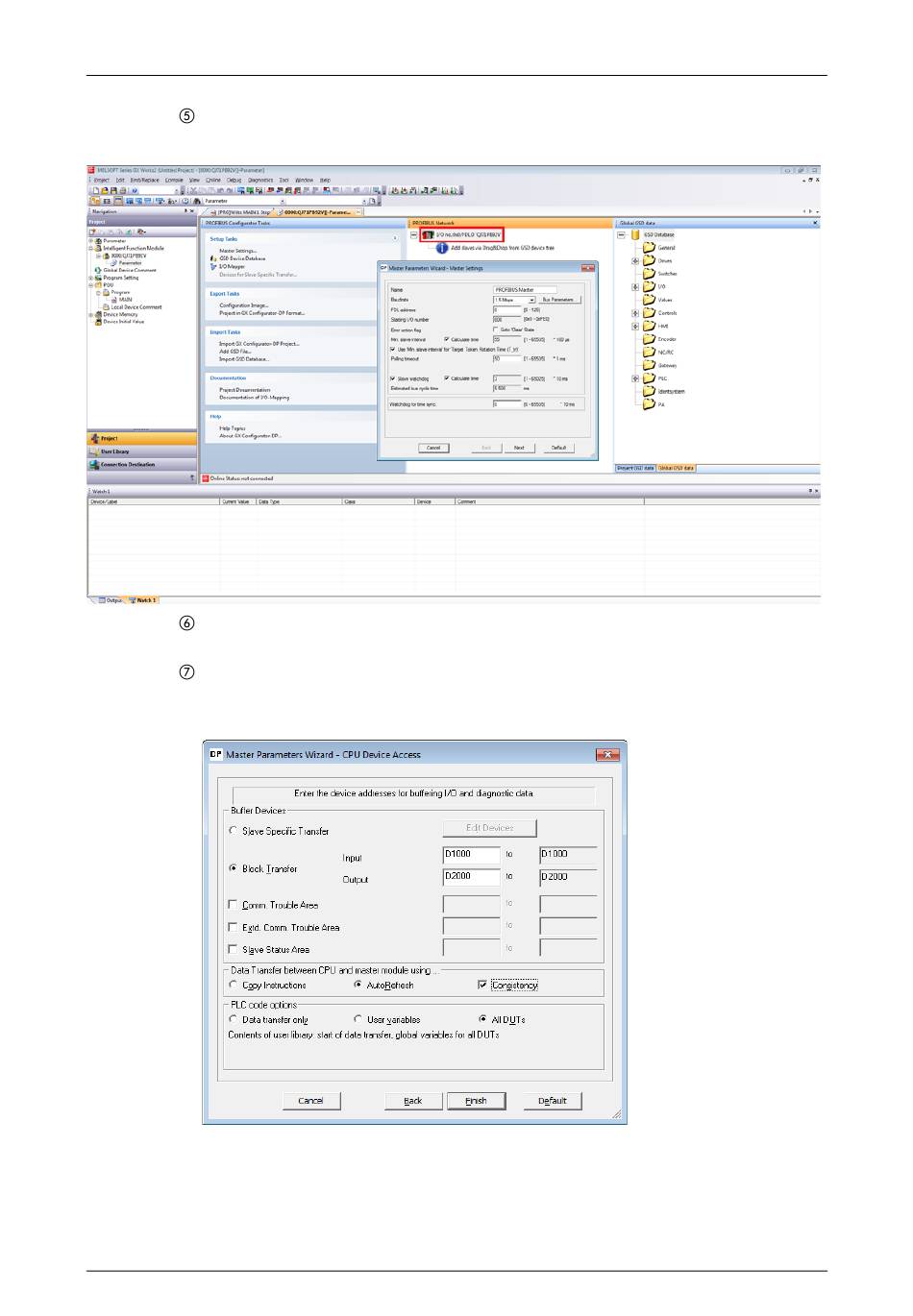

First setup the Profibus Master. Double click on the master module (in the screenshot visible
as "I/O no.:0x0 FDL:0 'QJ71PB92V'. This will bring up the "Master Parameters Wizard".
The Baudrate, FDL address and other settings can be changed as needed. For this tutorial
these settings will not be changed. Click Next to proceed.
On this screen it is possible to change the buffer devices, and data transfer between Profibus
Master and CPU. For this tutorial use AutoRefresh with Consistency. Click Finish to save set-
tings and close this wizard.
