GX Works2 (Q-CPU) Telegram 1 example

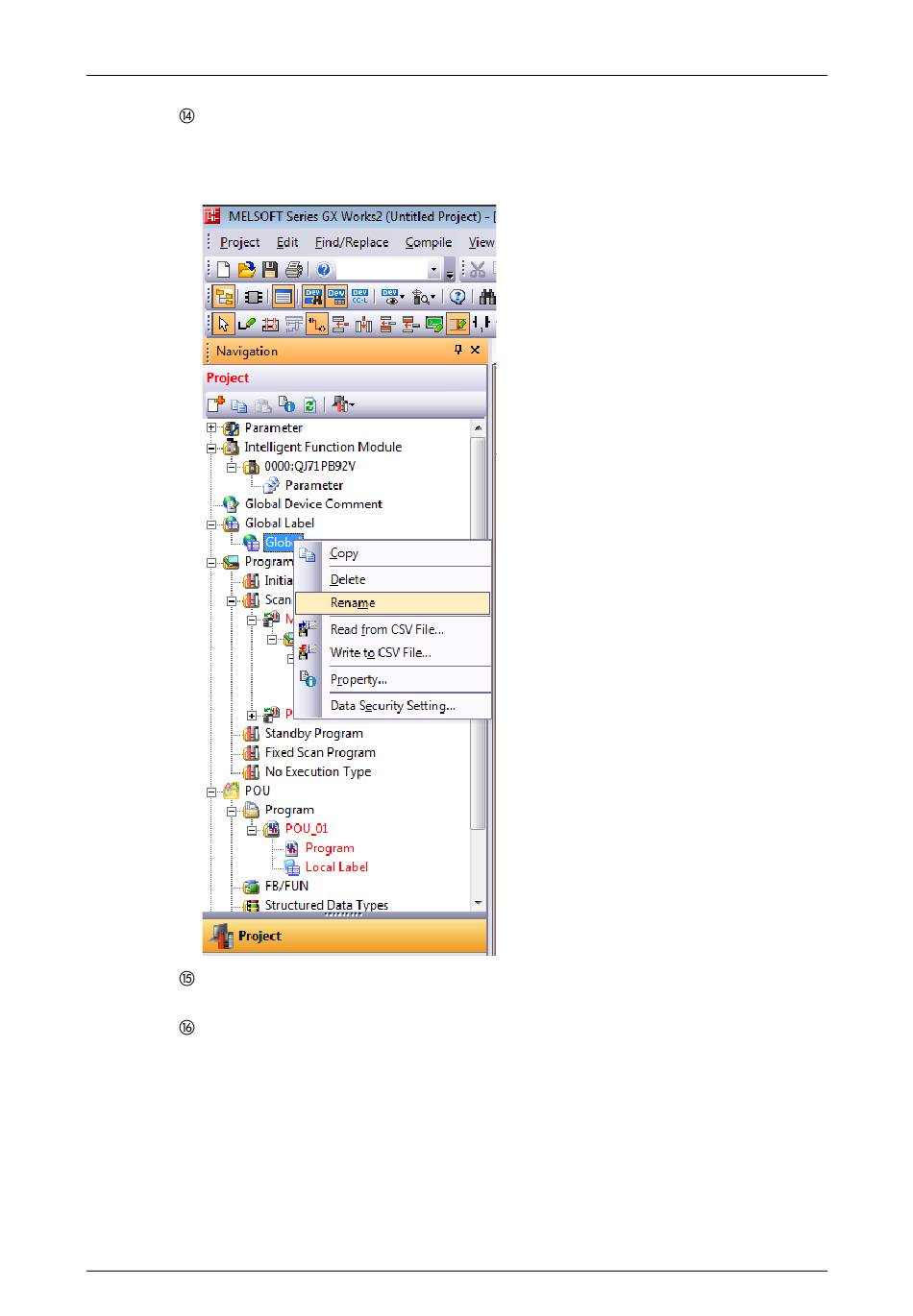

The POU Generation creates a library containing global variable definitions. The global label
name conflicts with the project global label name setup by default in GX Works 2. In order to
avoid conflict, change the name of the project global label from "Global1" to "Global". If this
is not done, an error will occur upon compilation.
The Profibus controller is setup and ready to run after compilation and write to the PLC. Pro-
ceed to write the program to get the inverter running under a set frequency.
Go to the User Library section, select the library generated by Profibus configurator and ex-
pand Global Label section. Double click on the global variables "Global1". Take note of the
name of the global variables representing the input and output parameters to the inverter
Profibus controller. In this case it should be "vHA0_input" and "vHA0_output". Both are an ar-
ray of two words containing:
