GX Works2 (Q-CPU) Telegram 1 example

3.4 GX Works2 (Q-CPU) Telegram 1 example
This chapter describes running the inverter through the A8NDPV1 Profibus option card using
GX Works 2 with a QCPU and QJ71PB92V Profibus Master. GX Configurator DP 7.10L or newer is
required to perform the setup.

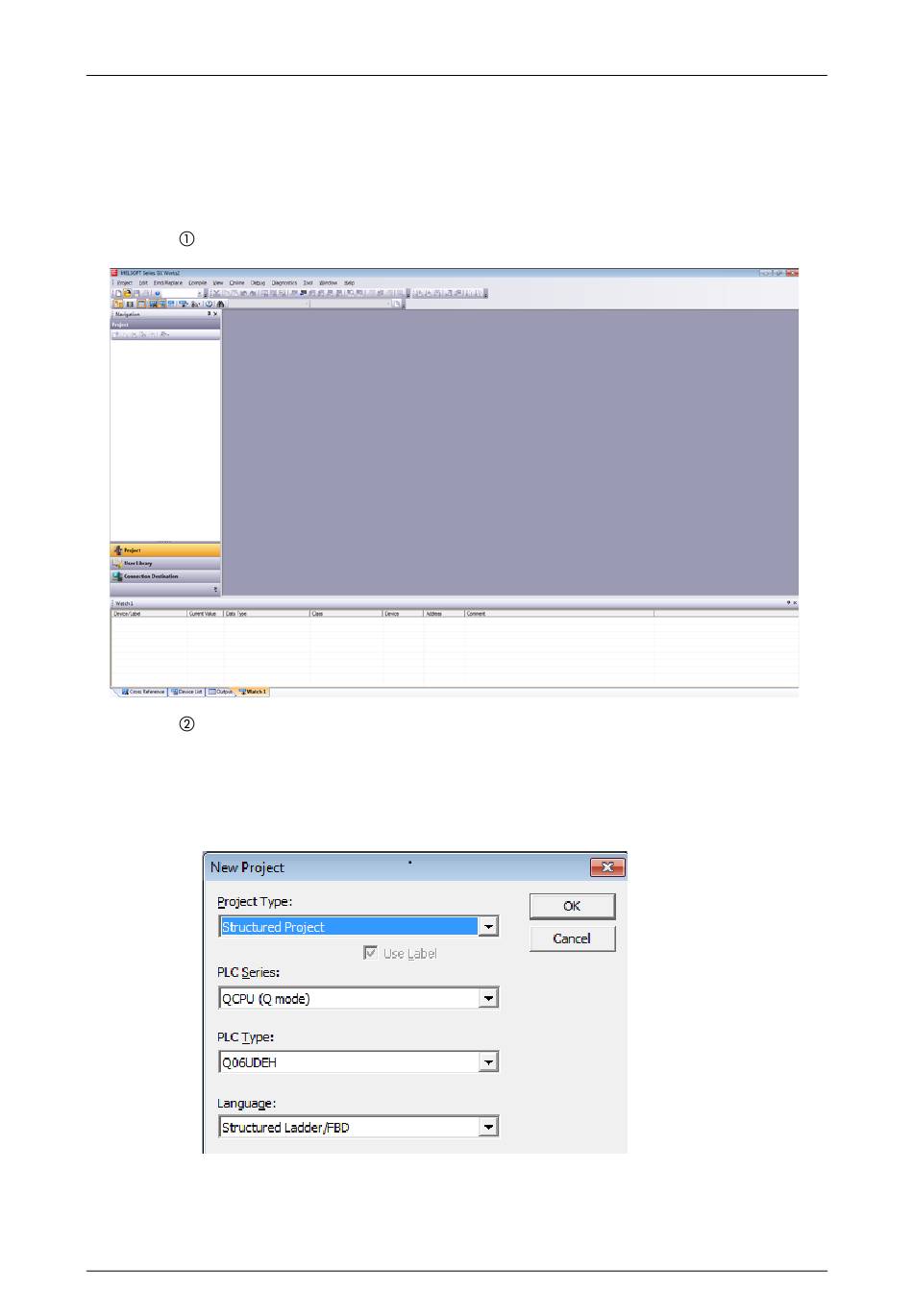

Start with a new project.
Select:
– Project type: Structured project;
– PLC Series: QCPU (Q mode);
– PLC type: select the cpu;
– Language: Structured Ladder/FBD.
