Get Started

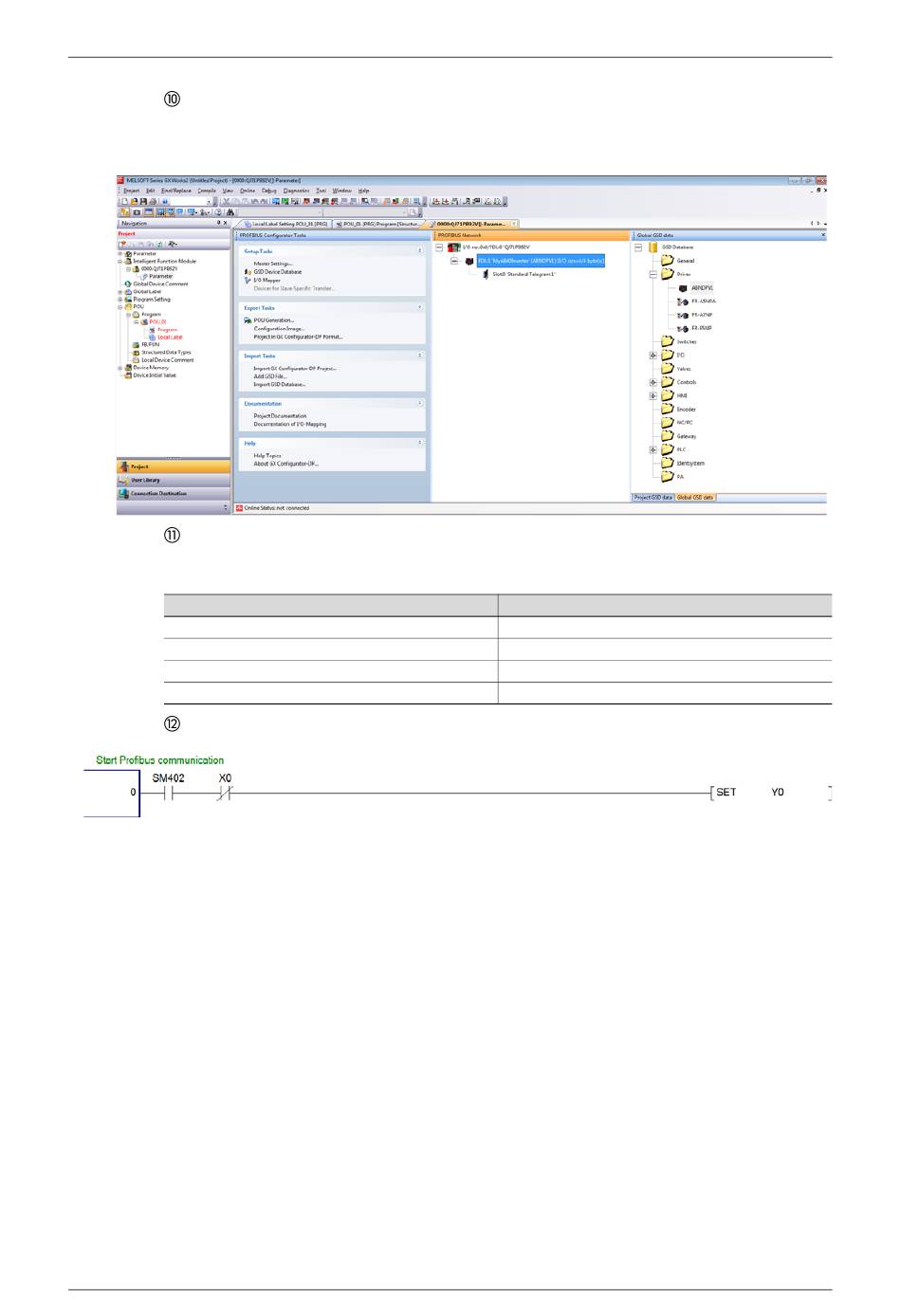

Click Next to proceed. No changes are required on this screen. After clicking Next proceed to
the final screen and click Finish. The configured Profibus Slave should appear in the Profibus
Network window, like below.
As of now, the Profibus controller is setup and ready to run after compilation and write to the
PLC. Proceed to write the program to get the inverter running under a set frequency. Below
is a table of PLC devices and their corresponding meaning in PROFIdrive
Device
D1000 (input)
D1001 (input)
D2000 (output)
D2001 (output)
Start the ladder program by initializing Profibus communication.
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Simple Ladder Telegram 1 example
Description
ZSW1
NIST_A
STW1
NSOLL_A
