GX Works2 (Q-CPU) Telegram 1 example

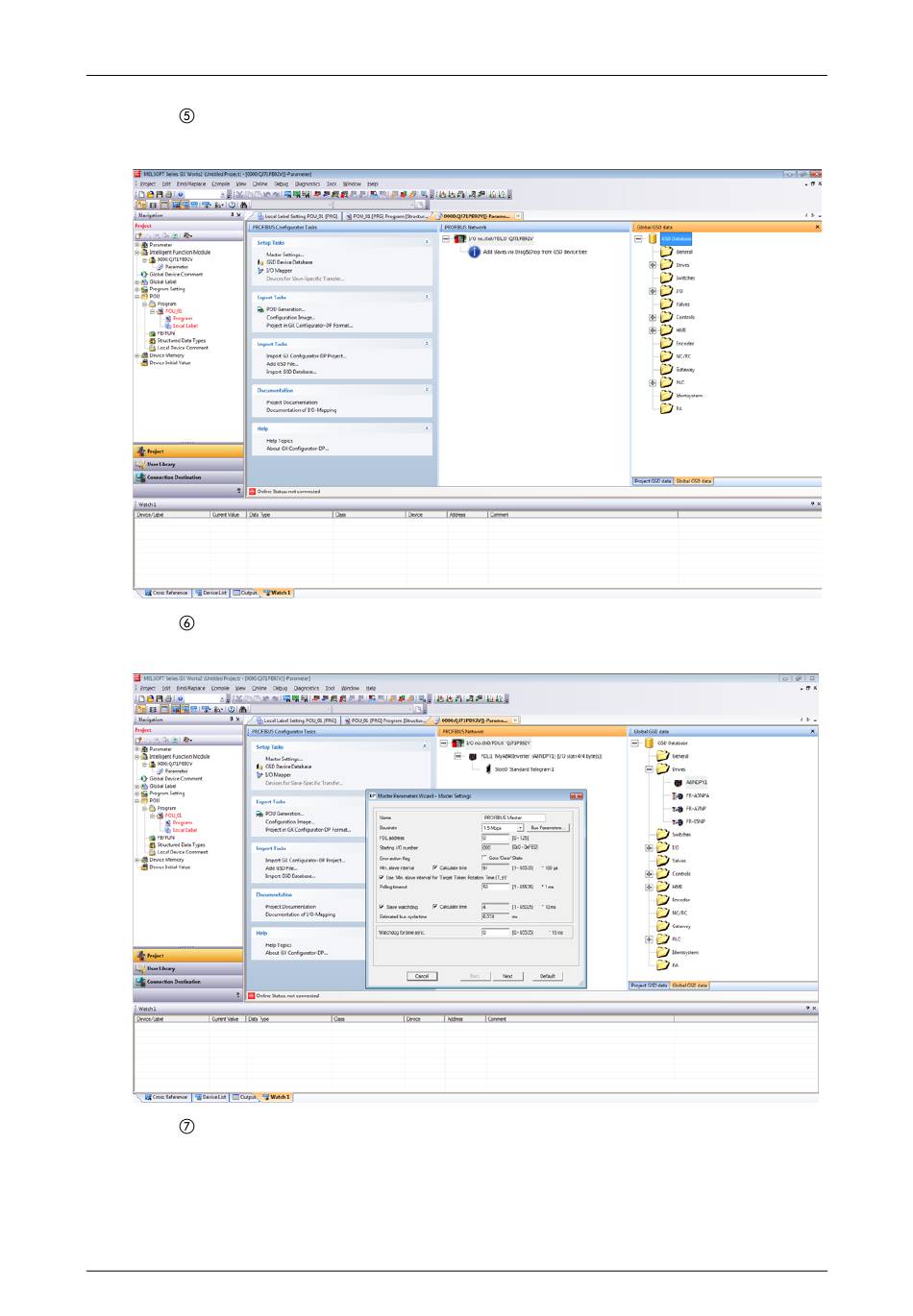

The Profibus-DP module should be inserted into the Intelligent Function Module tree. Expand
it, and double click on Parameter. This should open the Profibus Configurator.
First setup the Profibus Master. Double click on the master module (in the screenshot visible
as "I/O no.:0x0 FDL:0 'QJ71PB92V'. This will bring up the "Master Parameters Wizard".
It is possible to change the Baudrate, FDL address and other settings as needed. For this tuto-
rial these settings will not be changed. Click Next to proceed.
