Get Started
Click Next, and Finish to proceed. Save the project, and write it to the PLC. The additional mon-
itor data can be viewed in the appropriate buffer device. To view the devices that are occu-

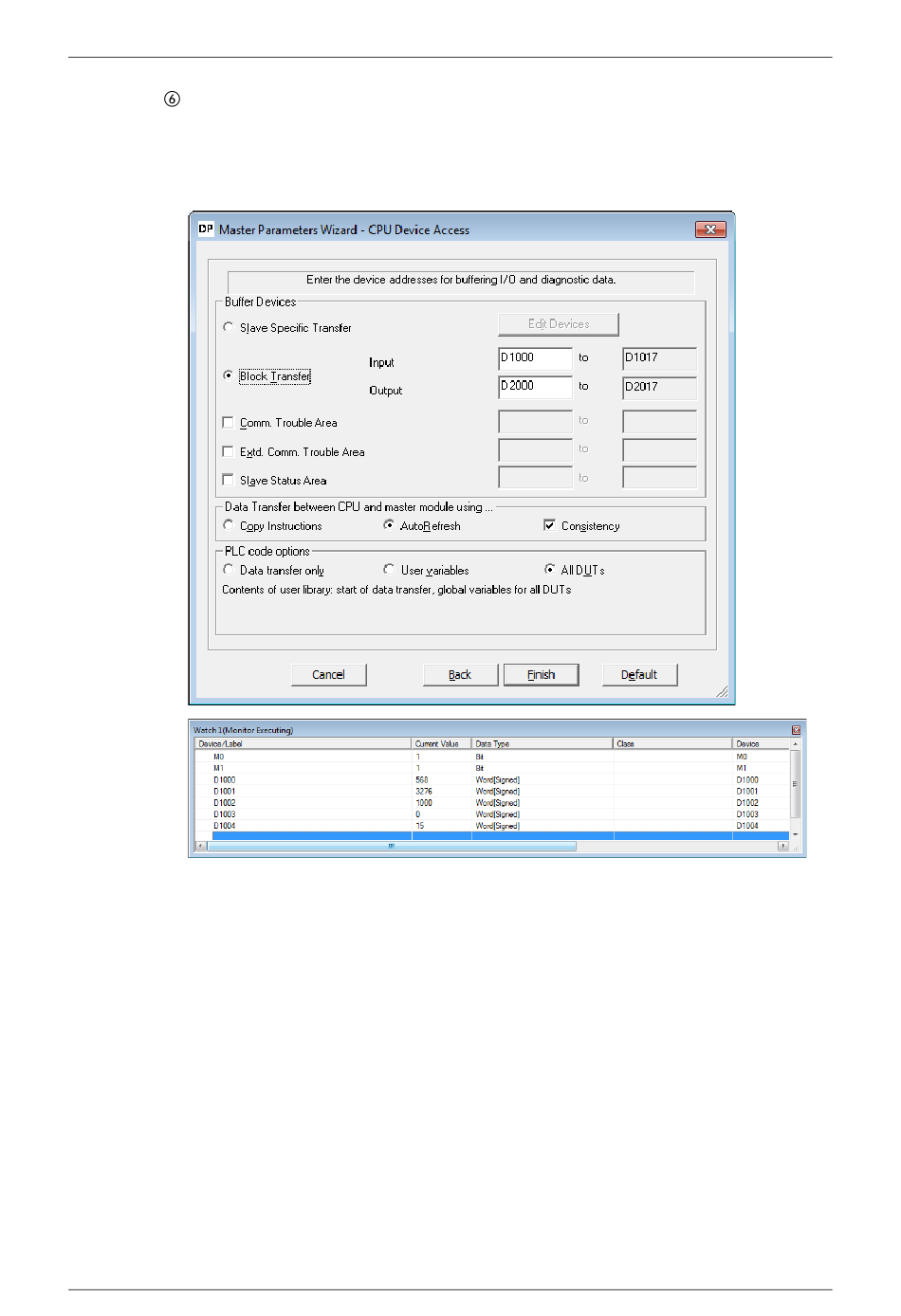

pied by Profibus, double click on the Profibus master to bring up the Master Parameters
Wizard and click Next. The buffer devices section displays which device addresses are occu-
pied.
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Simple Ladder Telegram 102 example
53
