GX Works2 (FX-CPU) Telegram 1 example

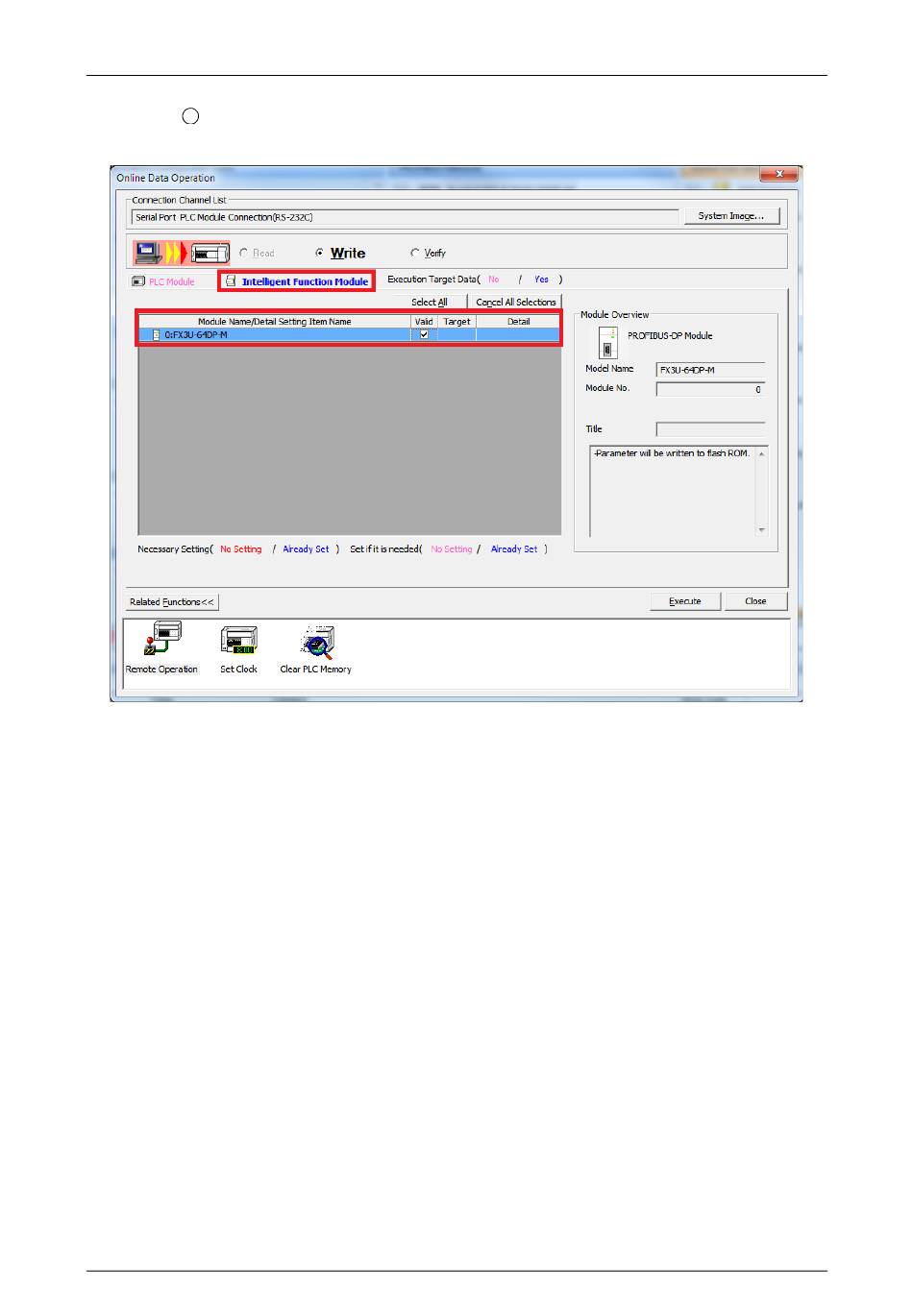

Compile, and write the program and parameters to the PLC. Be sure to select the intelligent
21
function module, like on the screenshot below.
If this option is not visible, then the firmware on your FX3U-64DP-M module does not support
the new intelligent module function. Please upgrade the firmware, or download the module
setup using the standalone GX Configurator DP.
After resetting the PLC, and powering up the inverter, set bits M0 and M1 to get the inverter
running.
76
Get Started
