Get Started

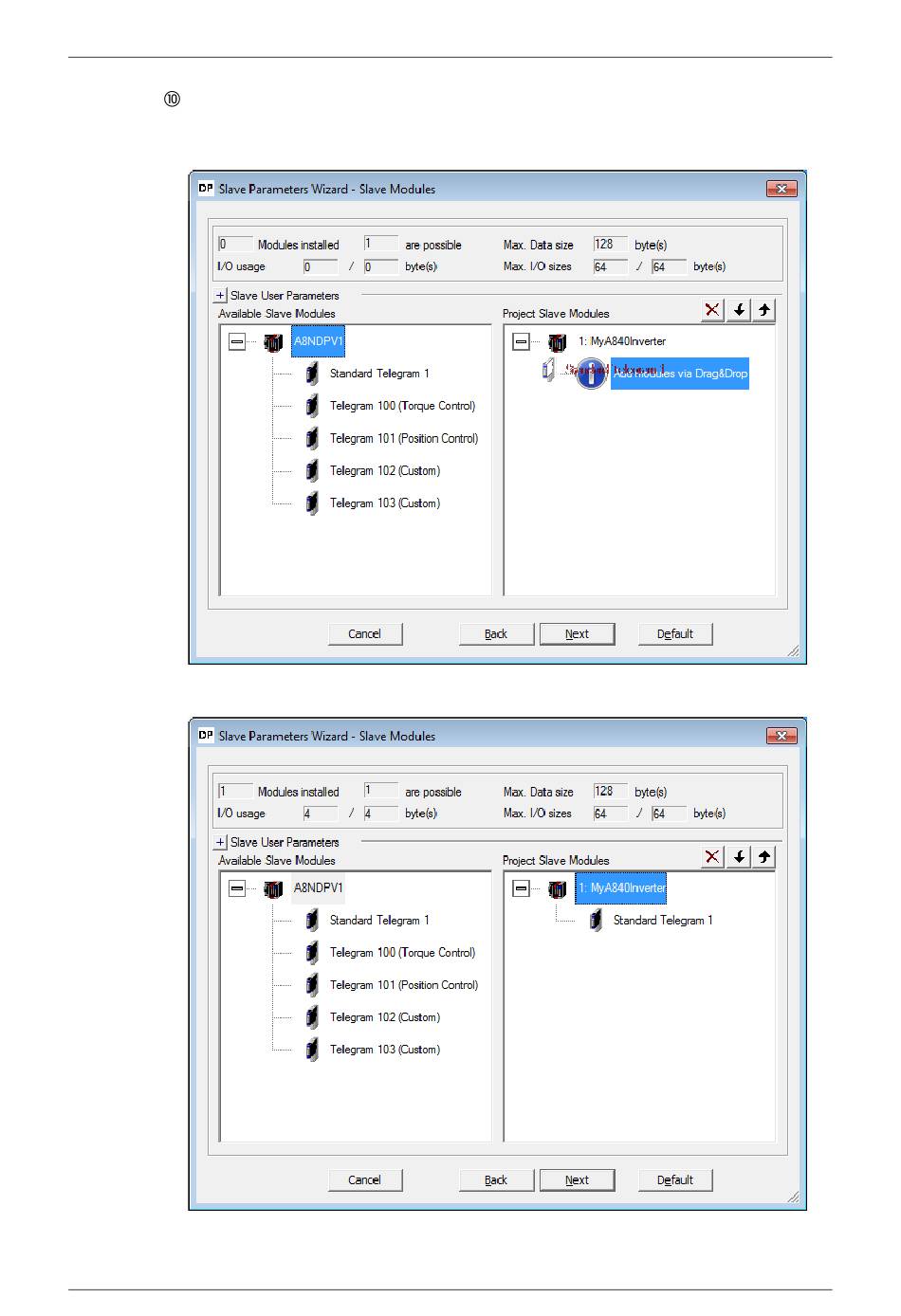

Select the communication protocol used to communicate with the option card. For this tuto-
rial use "Standard Telegram 1". Drag this option from the "Available Slave Modules" to "Pro-
ject Slave Modules". The A8NDPV1 supports only one module.
The result should be:
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Telegram 1 example
21
