Get Started

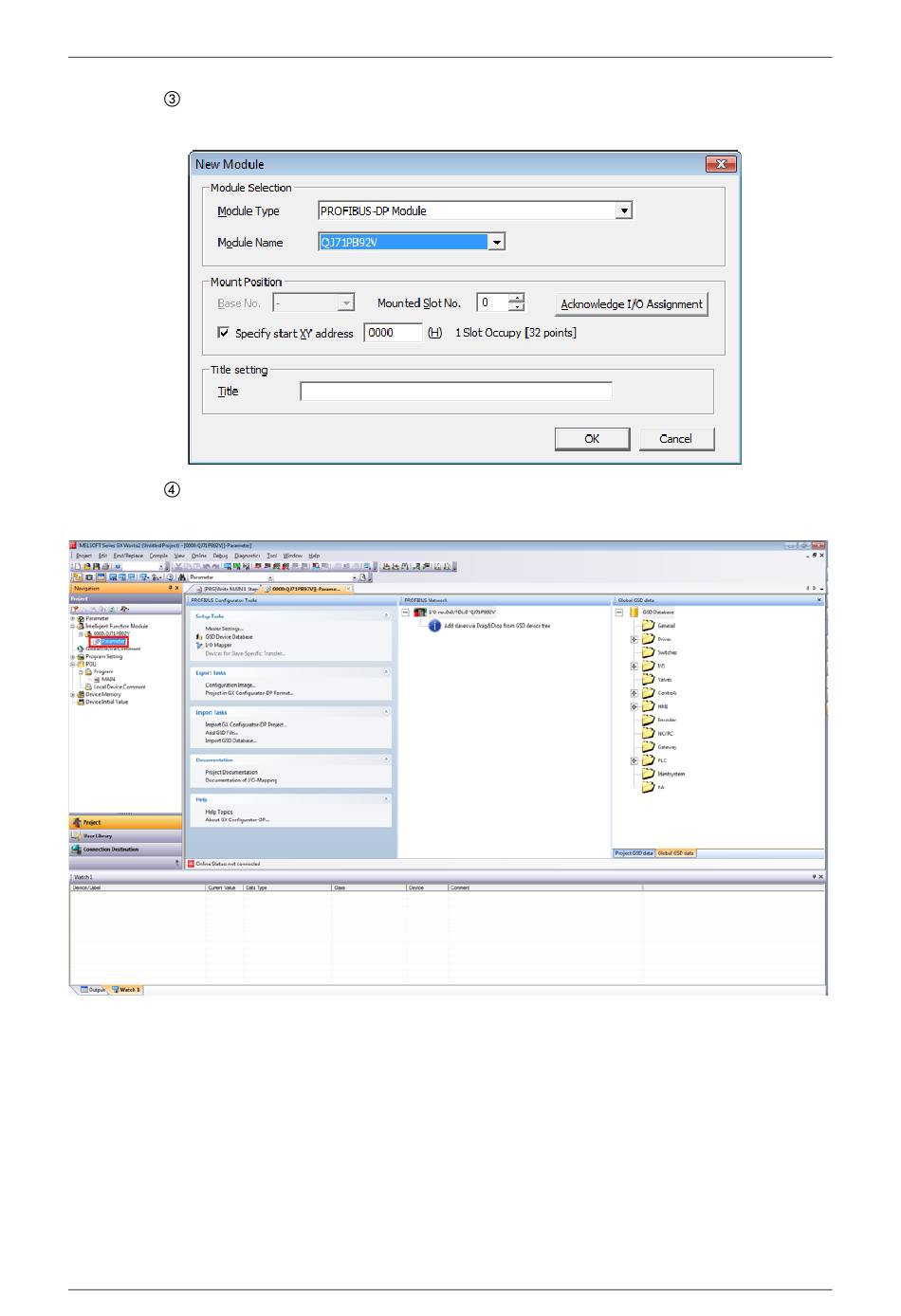

In the new window, click Module Type and select "PROFIBUS-DP Module". Module Name
should be set to QJ71PB92V. Save this setting by clicking OK.
The Profibus-DP module should be inserted into the Intelligent Function Module tree. Expand
it, and double click on Parameter. This should open the Profibus Configurator.
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Simple Ladder Telegram 1 example
43
