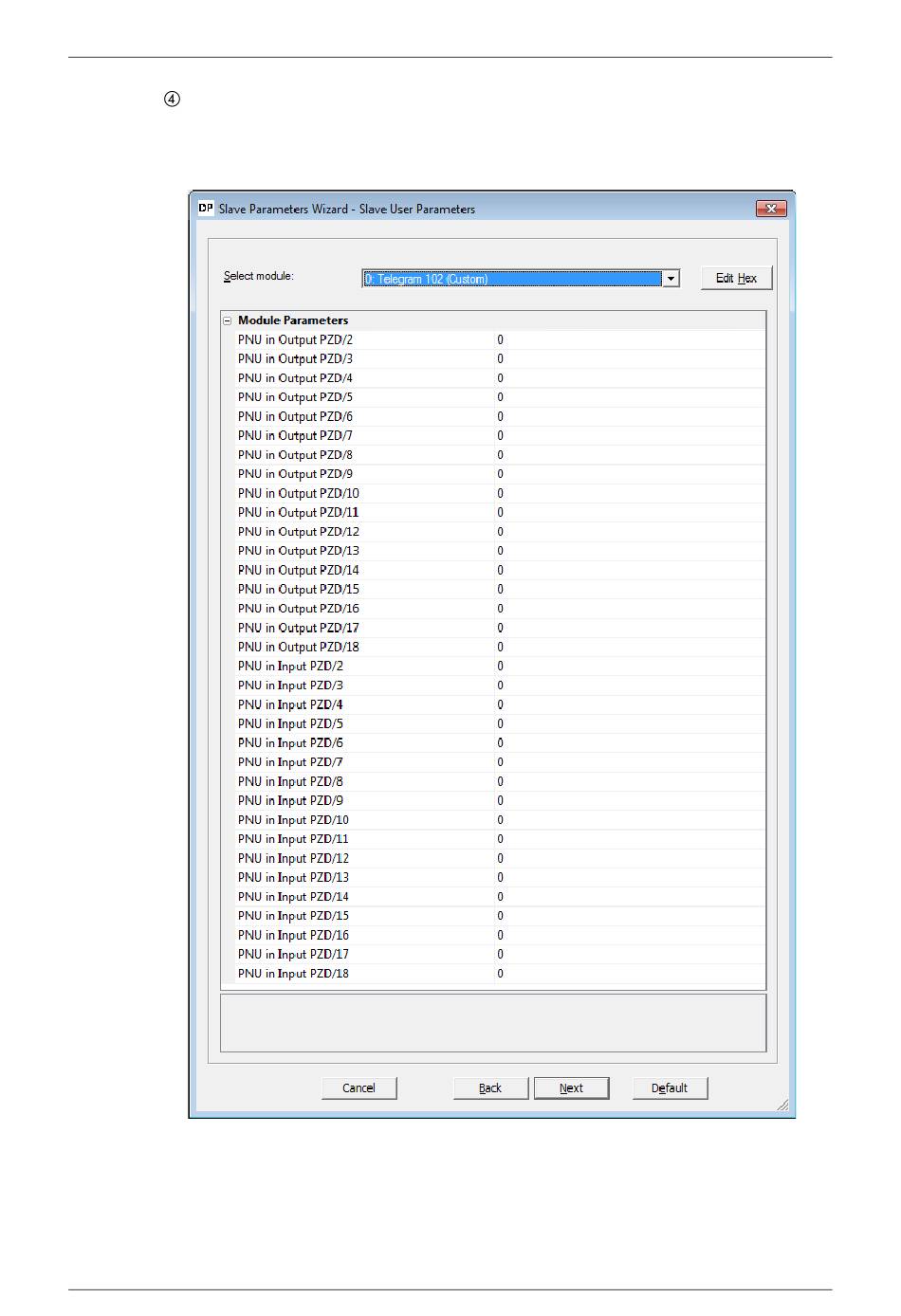

From the "select module" dropdown, select slot 0: Telegram 102 (Custom). It is now possible
to setup the input and outputs of the telegram. There are 18 inputs and outputs used in this
telegram, one of each is reserved for control/status word (leaving 17 inputs/outputs free for
custom setup).
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Telegram 102 example
