GX Works2 (Q-CPU) Telegram 1 example

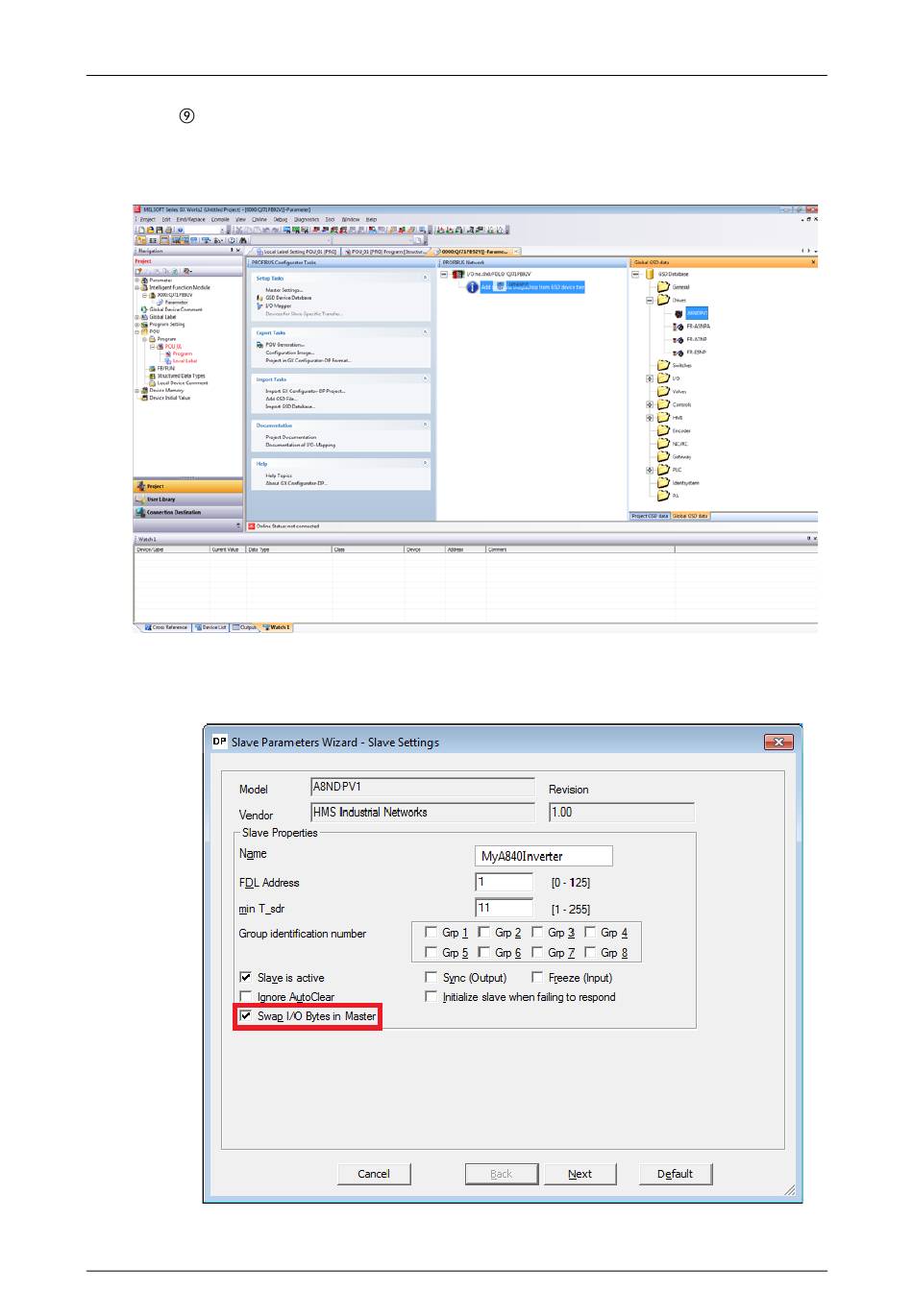

In the Global GSD data section, expand drives and search for A8NDPV1. If it is not available,
right click and select Add GSD File. Search for the GSD File on the drive (included with this
manual), afterwards the A8NDPV1 should appear under drives. Drag this option to the Profi-
bus Master, like on the screenshot.
The "Slave Parameters Wizard" should be shown. Enter a name, select 1 for FDL Address, and
make sure to select "Swap I/O Bytes in Master". All other settings can remain as default. Click
Next to proceed.
