GX Works2 (Q-CPU) Simple Ladder Telegram 1 example

3.7 GX Works2 (Q-CPU) Simple Ladder Telegram 1 example
This chapter describes running the inverter through the A8NDPV1 Profibus option card using
GX Works 2 in Simple Ladder mode with a QCPU and QJ71PB92V Profibus Master. GX Configura-
tor DP 7.10L or newer is required to perform the setup.

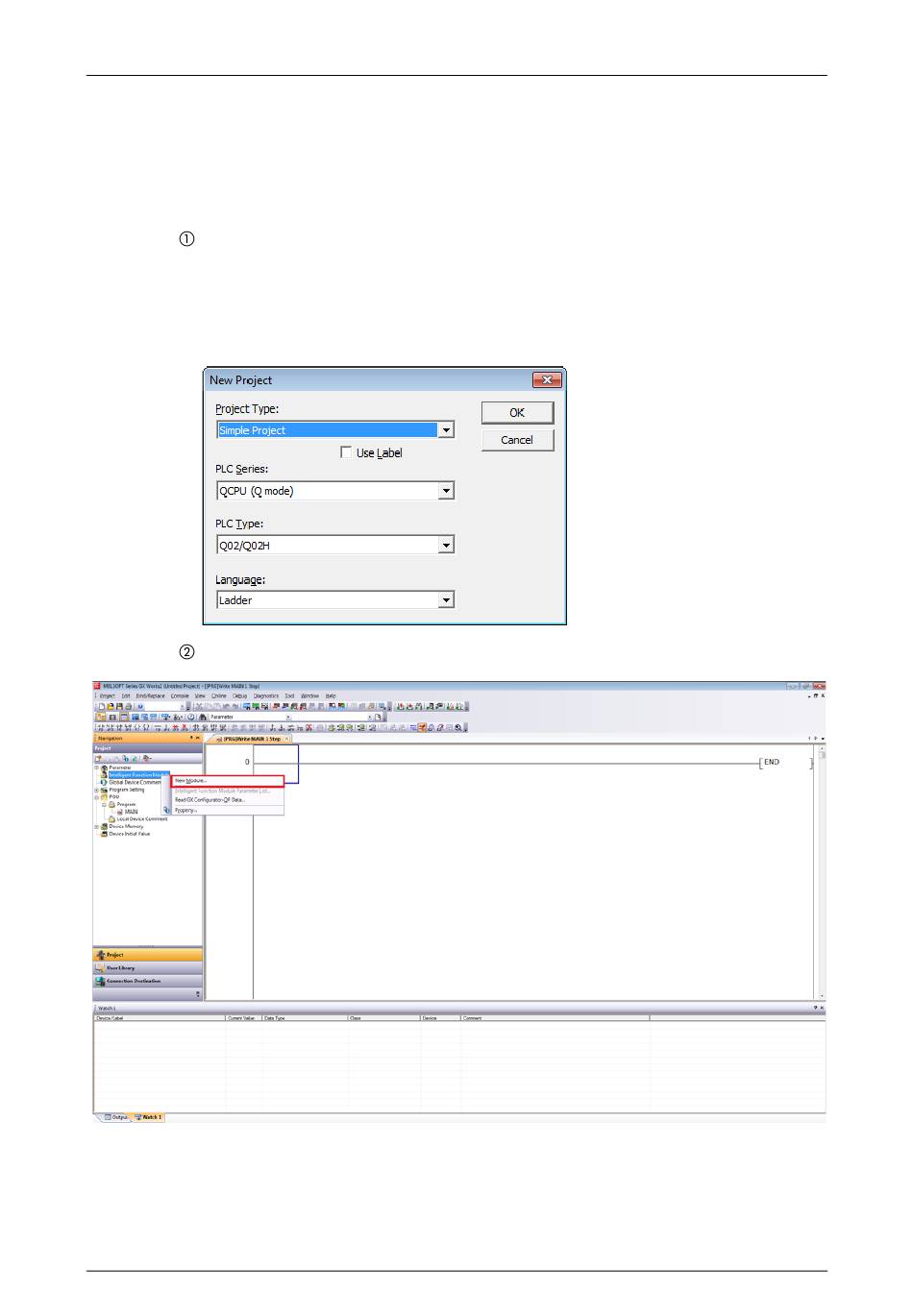

Start with a new project in simple ladder mode. Select:
– Project type: Simple project;
– PLC Series: QCPU (Q mode);
– PLC type: select the cpu;
– Language: Ladder.
Add a new Intelligent Function Module from the menu on the left (right click and select new):
