TIA Portal Telegram 102 example

3.14 TIA Portal Telegram 102 example
This chapter describes running the inverter through the A8NDPV1 Profibus option card using Sie-
mens TIA. First perform the setup using telegram 1.

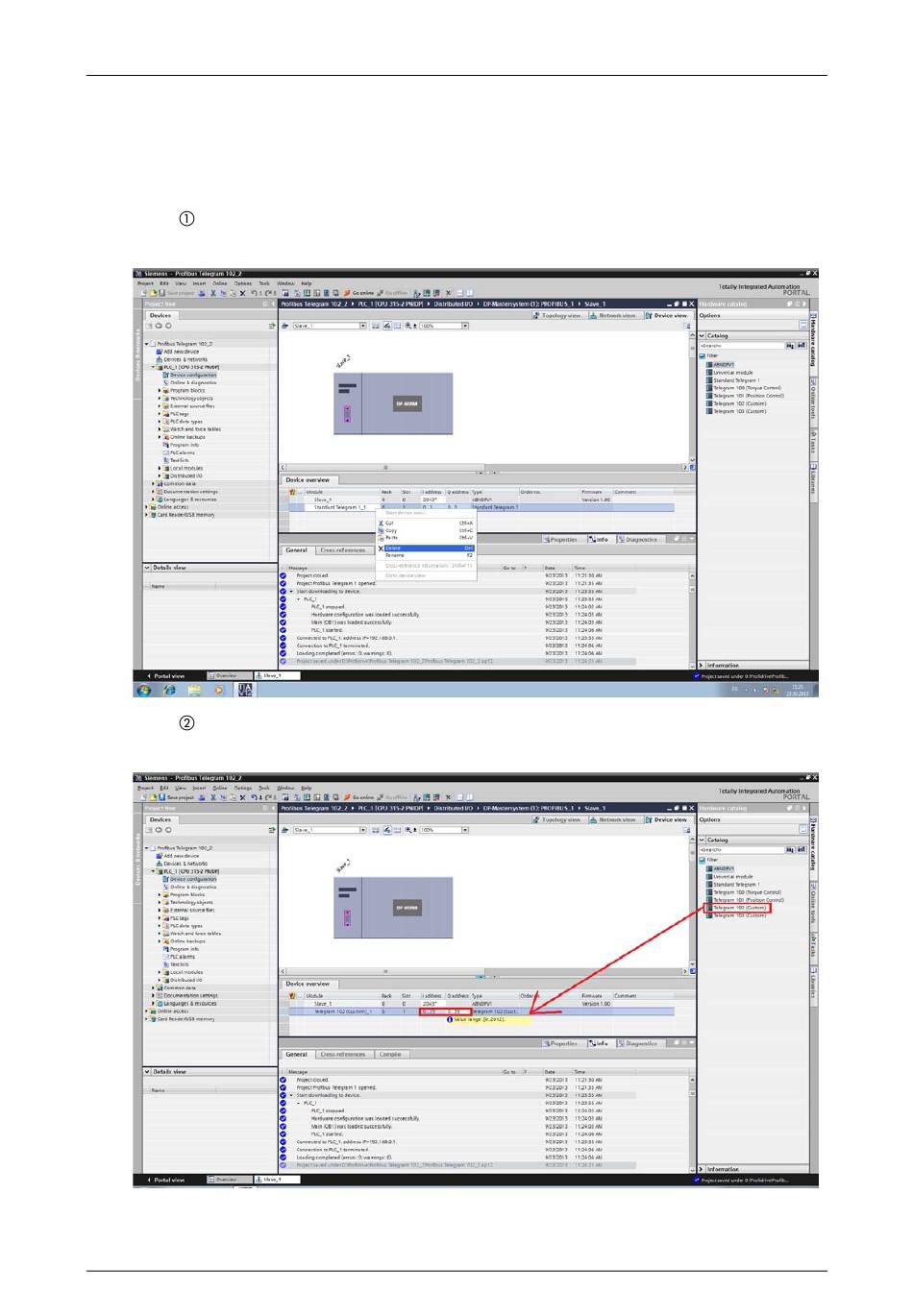

Enter the device view of the PROFIBUS option card slave and delete Standard Telegram 1 from
the device overview.
Now drag Telegram 102 (Custom) from the Hardware Catalog to the empty slot. Change the
starting I and Q address to 0.
