Get Started

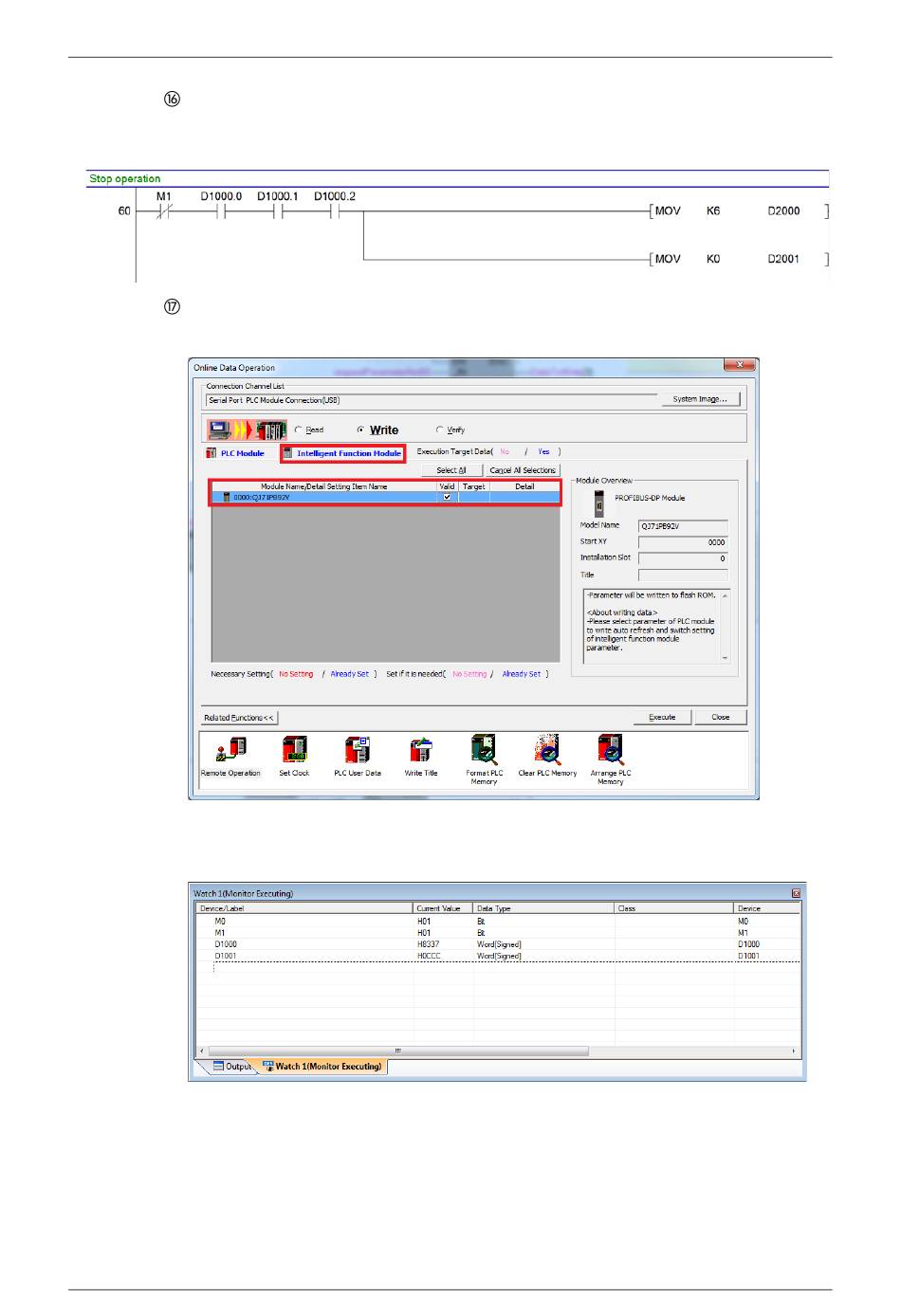

Finally add the code to stop the drive, when M1 is reset. Check whether the first 3 bits of ZSW1
are ON. This condition means that the drive is in operation mode. If this condition is met, and
M1 is not ON, reset the set point speed to zero, and set STW1 as 6.
Compile, and write the program and parameters to the PLC. Be sure to select the intelligent
function module, like on the screenshot below.
After resetting the PLC, and powering up the inverter set bits M0 and M1 to get the inverter
up and running.
A8NDPV1 PROFIBUS Option Board
GX Works2 (Q-CPU) Simple Ladder Telegram 1 example
