GE HEALTHCARE
REV 9
X−RAY TUBE & COLLIMATOR
INSTALLATION ON XT SUSPENSION
ILLUSTRATION 7

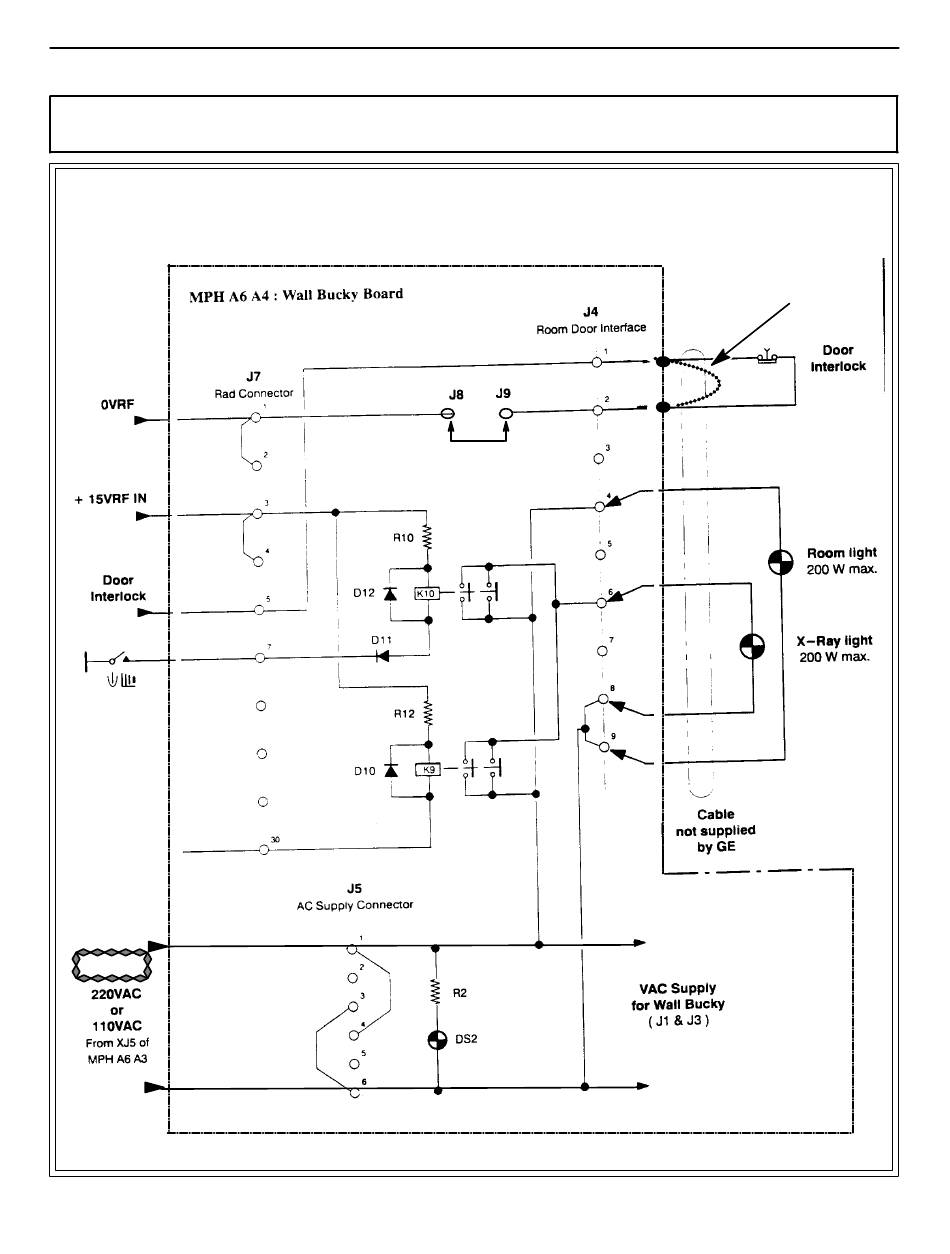

MPH A6 A4: WALL BUCKY BOARD
CAUTION
See MPH
Service
Manual
System Service Manual − SYSTEM COMPAX 40E, CE Marked
with MPH 50/65/80 (including XT, RS 85 and Tomo−Link)
Job Card IST 001
RAD
76
DIRECTION 2154260−100
2 of 4
INSTALL JUMPER IF
NO DOOR INTERLOCK
