GE HEALTHCARE
REV 9
X−RAY TUBE & COLLIMATOR
INSTALLATION ON XT SUSPENSION

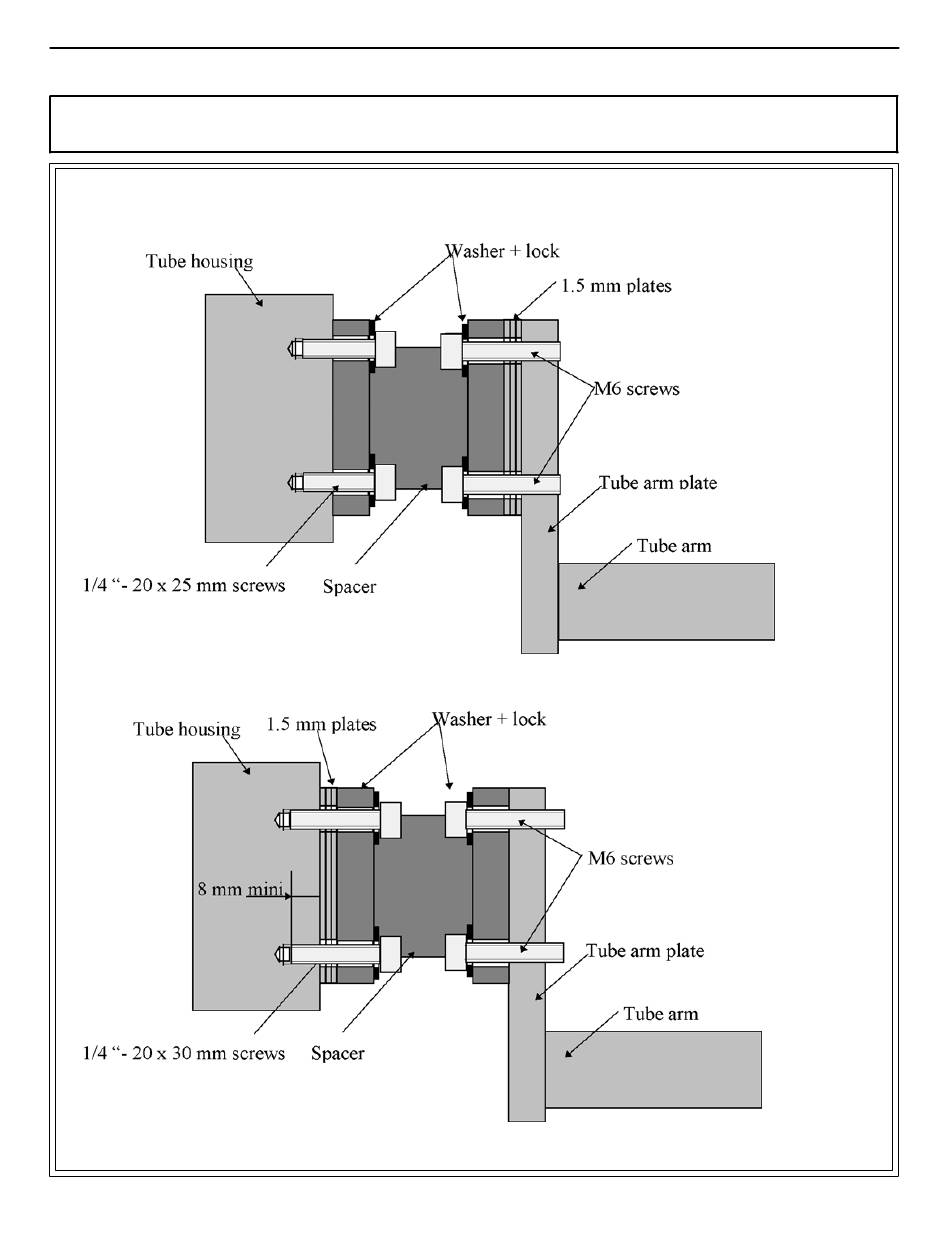

ILLUSTRATION 4
TUBE ASSEMBLY OF RS85 ARM WITH SPACER (1.5 MM PLATES ON ARM SIDE)
ILLUSTRATION 5
TUBE ASSEMBLY OF RS85 ARM WITH SPACER (1.5 MM PLATES ON TUBE HOUSING SIDE)
System Service Manual − SYSTEM COMPAX 40E, CE Marked
with MPH 50/65/80 (including XT, RS 85 and Tomo−Link)
Job Card IST 001
70
DIRECTION 2154260−100
4 of 8
