Installing the power supply for the add-on module

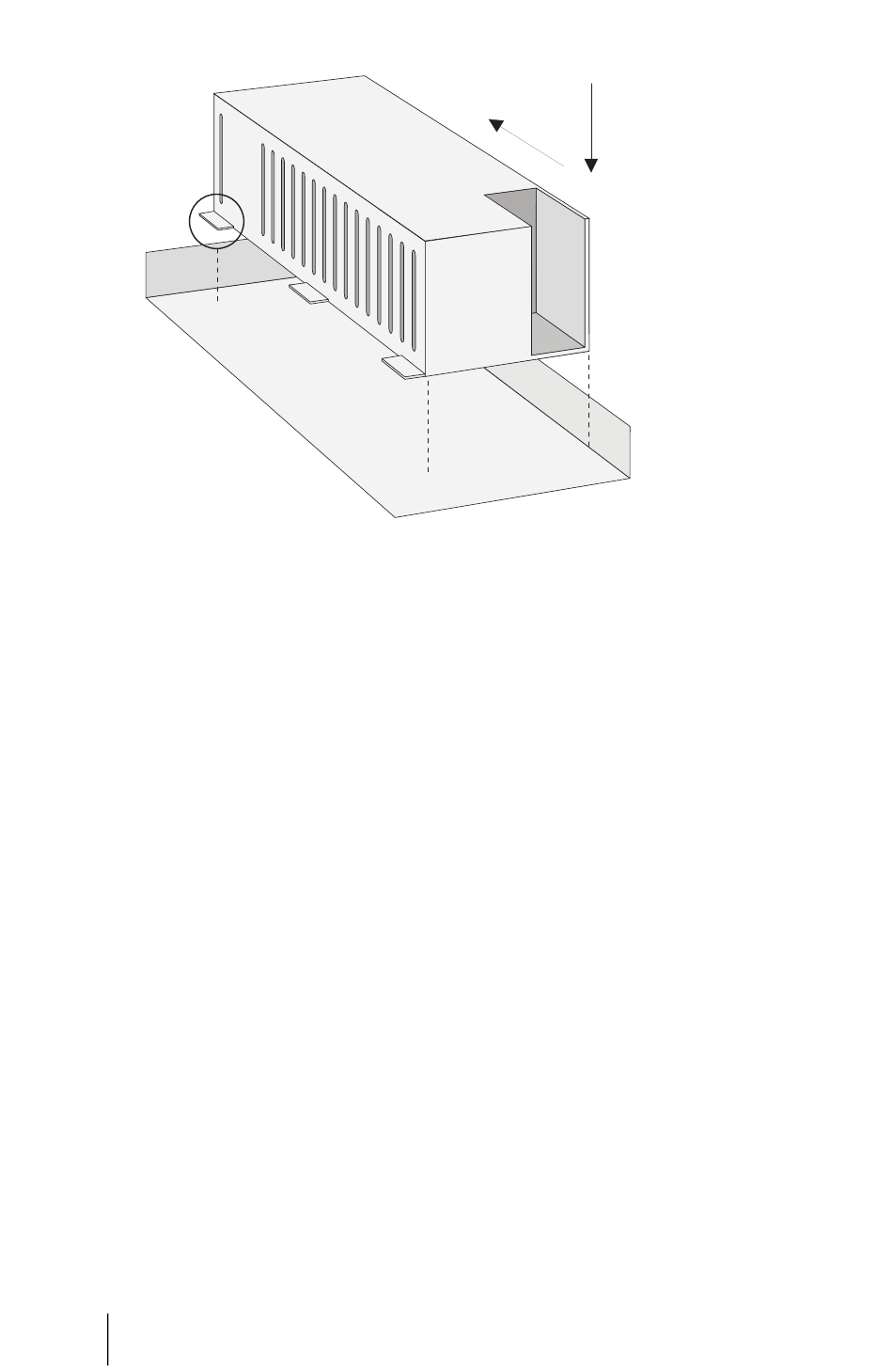

5. Place the power supply to the
right of the add-on module.
Carefully press the power supply
into the mounting recess pro-
vided (shown in the diagram as
"1"). Move the power supply for-
wards until it snaps into place in
all six pressure terminals ("A",
"2").
6. Connect the power supply out-
put (flat conductor cable) to the
appropriate jack of the add-on
module. Insert the fully insu-
lated connector of the mains
supply in the power supply con-
nection provided.
7. Establish an Ethernet connec-
tion between the LAN port of
the basic module and the LAN1
port of the add-on module (see
20
Installing an Expansion Set
2.
1.
also Positions of the Ports start-
ing on page 26). To do this, use
the short Ethernet connection
cable from the add-on set. The
LAN0 port of the add-on module
is intended for connection to a
corporate LAN. You can connect
an existing Ethernet connection
cable to the LAN0 port of the
add-on module.
You usually install at least one inter-
face card on the add-on module. To
do this, read the instructions in the
following section.
Please note: Two power supplies
are provided for the OpenCom 130
with an add-on module. Always turn
on the power supply of the add-on
module first and then plug in the
plug-in power supply.
