A/B Ports; Actor/Sensor; Lan Port - DETEWE OpenCom 130 Mounting And Commissioning Manual

The power consumption of each U
port is approx. 3 W.
U /RFP with 1 U
pn
S int
0
2a 2b 1a 1b
1 2 3 4 5 6 7 8
RFP with 2 U
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
Pin assignment of the S
U ports
pn

a/b Ports

The a/b ports are for operating ana-
logue devices (a fax machine, mo-
dem or telephone). The maximum
permissible length of the cable is
1,000 m when twin-wire 0.6 mm ca-
ble (with twisted pairs) is used.
Doorstation equipment can be acti-
vated on an a/b1 port. In this case,
an electronic switch enables the
low-frequency voltage to be sepa-
rated from the feed.

Actor/Sensor

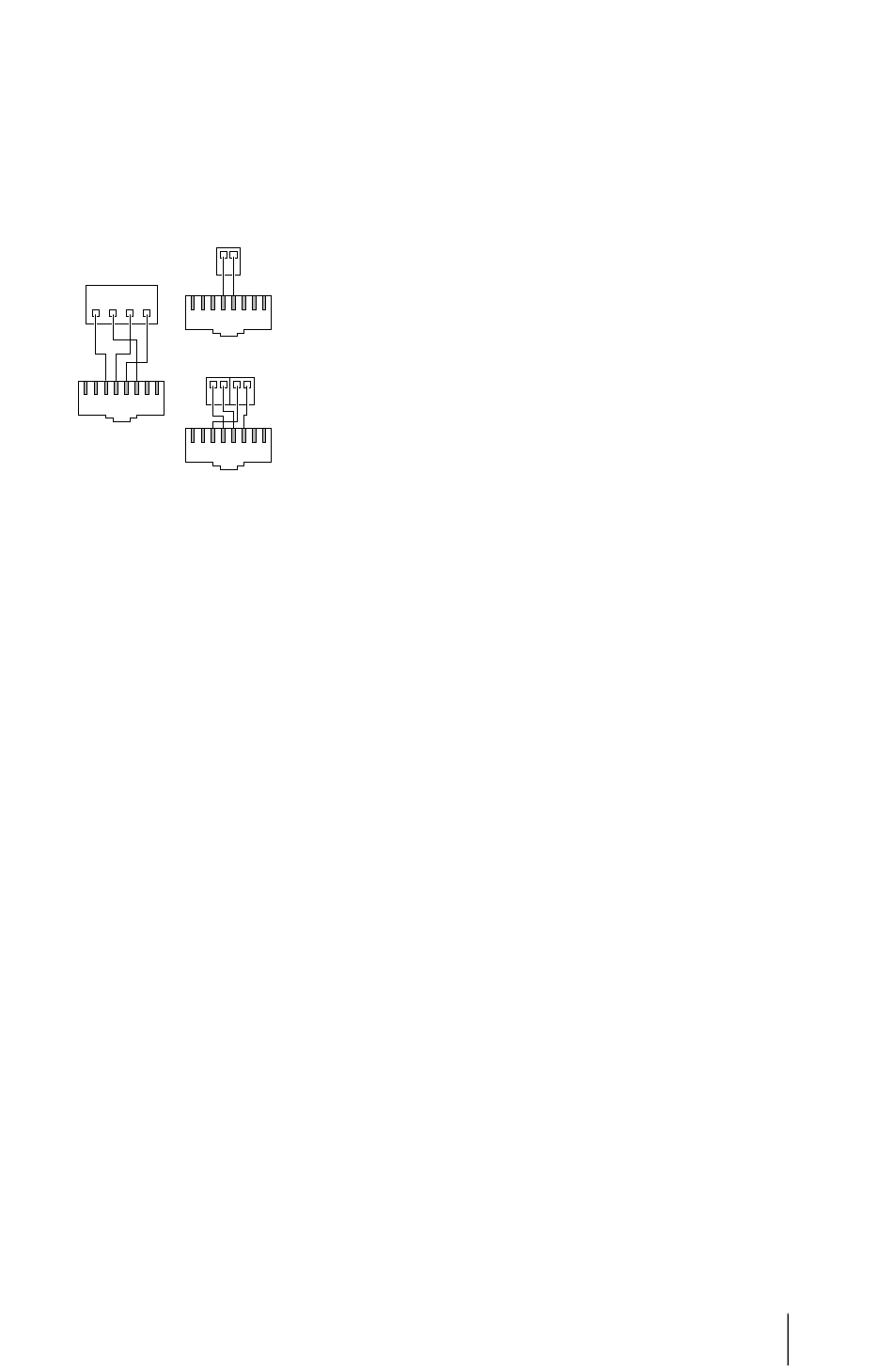

In order to operate an entrance in-
tercom and door opener, you need
four twin-wire cables:
Installation
pn
pn
pn
and
0
Port Assignment, Termination, Cable Lengths
one cable between the entrance
■
intercom and the a/b1 port,
one cable between the door
■
opener and the Actor1 port
(marked Intercom/Door opener
in the diagram Positions of the
Ports starting on page 26),
one cable between the inter-
■
com input and the Actor2 port
(marked Intercom/Relay in the
diagram Positions of the Ports
starting on page 26) to activate
the amplifier as well as
one cable between the doorbell
■
and the sensor port.
Only use entrance intercoms and
door openers complying with the
German FTZ Guideline no. 123D12.

LAN Port

The LAN port on the basic module
enables integration of the
OpenCom 130 into an existing in-
house LAN by means of a 10 Mbit
hub.
The LAN ports on the add-on mod-
ule (LAN0, LAN1 and LAN2) lead to
the Ethernet switch of the add-on
module. These LAN ports support
10 Mbit/s and 100 Mbit/s transmis-
sion speeds in half- or full-duplex
operation. The change in transmis-
sion rate and mode of operation is
automatic ("auto-sensing func-
31
