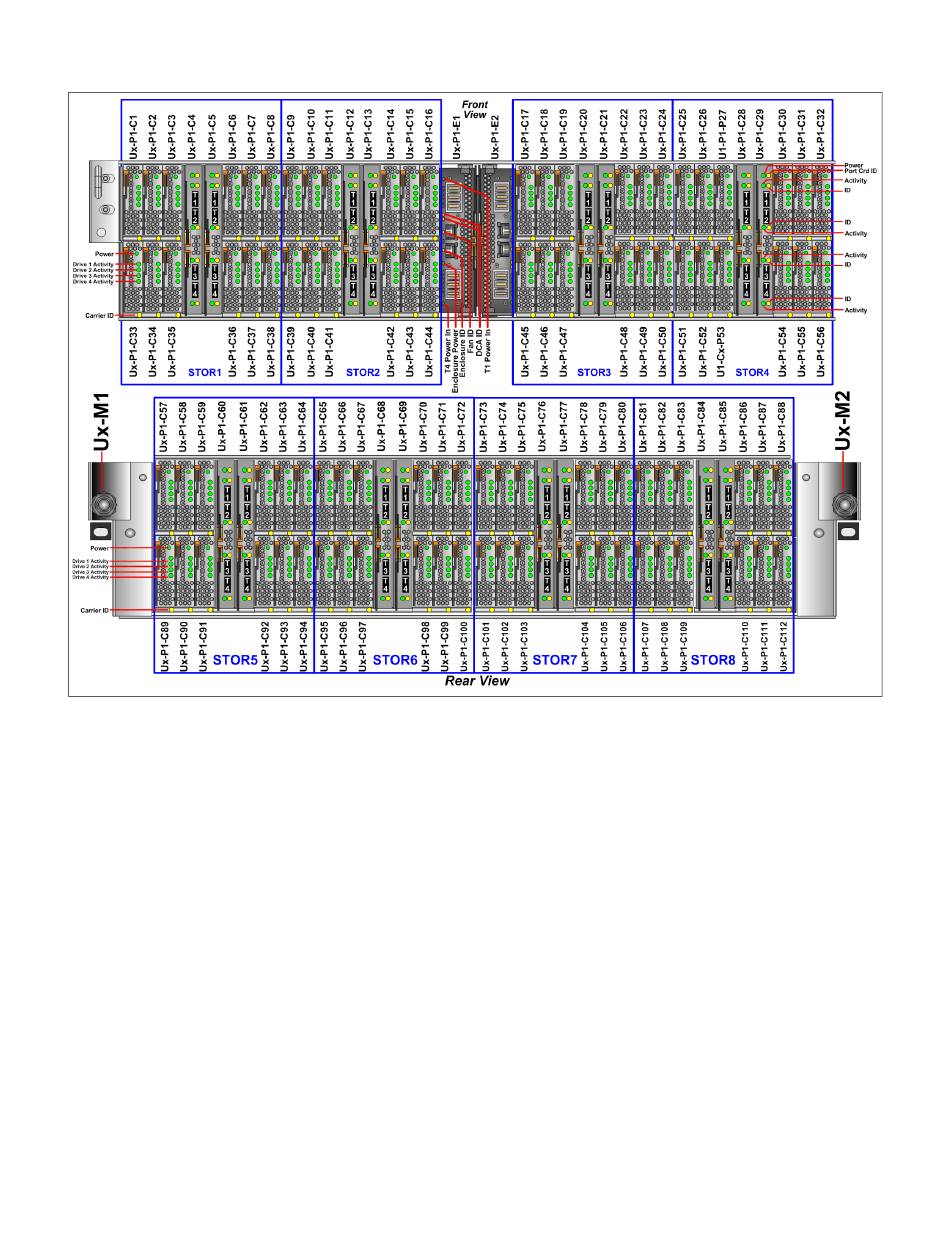

Figure 1-39 Disk enclosure front view
1.6.2 High-level description
Figure 1-40 on page 50 represents the top view of a disk enclosure and highlights the front
view of a STOR. Each STOR includes 12 carrier cards (six at the top of the drawer and six at
the bottom of the drawer) and two port cards.
Chapter 1. Understanding the IBM Power Systems 775 Cluster
49
