PIPESTAND MOUNTING

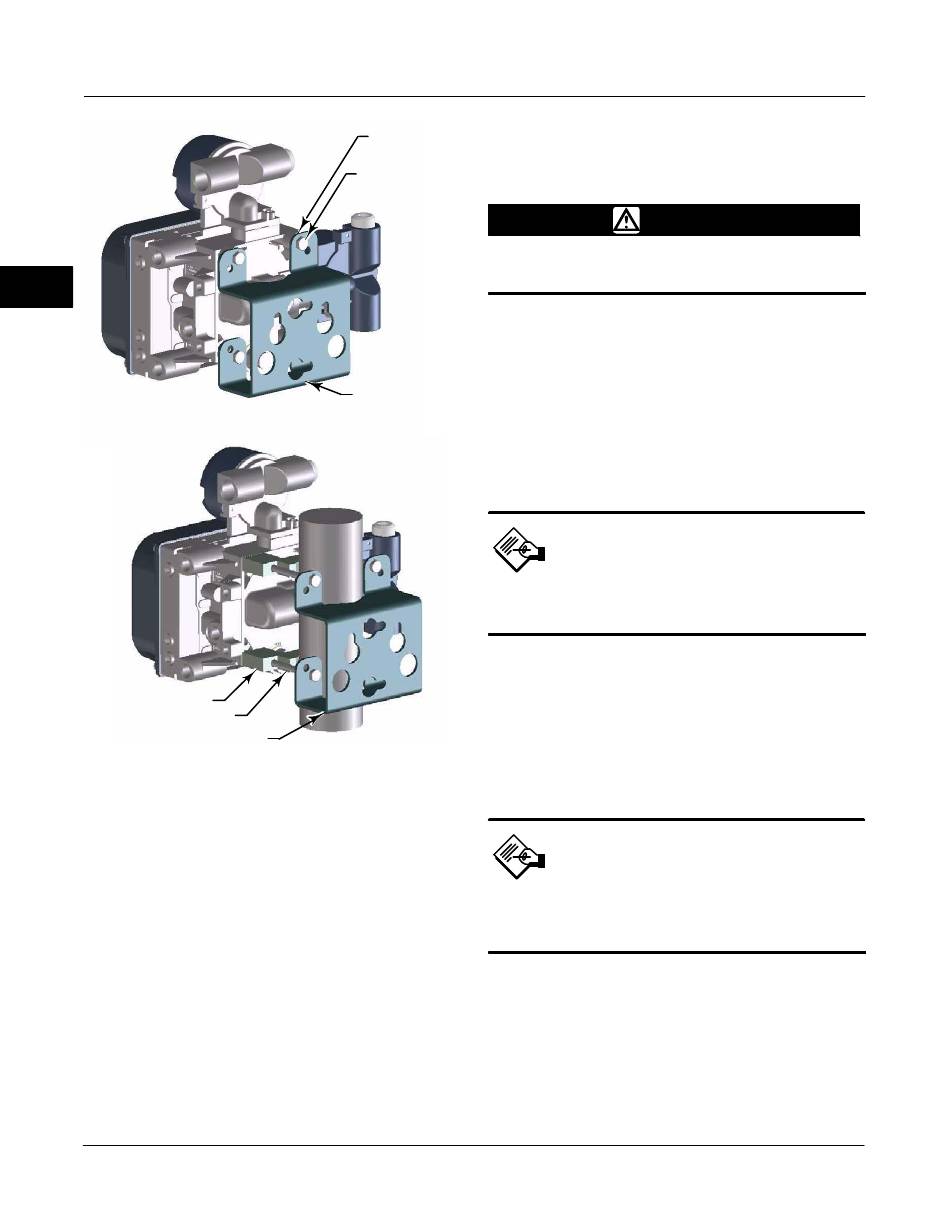

Figure 2-12. Type DVC6005f Base Unit Mounting
Pipestand Mounting
Refer to figure 2-12. Position a standoff on the back of
the base unit. Using two 101.6 mm (4-inch) 1/4-20 hex
head screws loosely attach the base unit to the
pipestand with the mounting bracket. Position the
second standoff, then using the remaining 101.6 mm
(4-inch) hex head screws, securely fasten the base
unit to the pipe stand.
2-12
Type DVC6015 on Sliding-Stem
SPACER
Actuators Up to 102 mm (4 Inches) of
Travel
1-INCH 1/4-20
HEX HEAD SCREW
Refer to the Installation WARNING at
the beginning of this section.
If ordered as part of a control valve assembly, the
factory mounts the digital valve controller on the
actuator, makes pneumatic connections to the
actuator, sets up, and calibrates the instrument. If you
purchased the digital valve controller separately, you
MOUNTING BRACKET
will need a mounting kit to mount the digital valve
controller on the actuator. See the instructions that
come with the mounting kit for detailed information on
mounting the digital valve controller to a specific
actuator model.
Refer to Type DVC6005f Base Unit
Mounting on page 2-10 when installing
a Type DVC6015 remote feedback unit.
The Type DVC6015 remote feedback unit mount on
sliding-stem actuators with up to 102 mm (4-inch)
travel. Figure 2-1 shows a typical mounting on an
actuator with up to 51 mm (2-inch) travel. Figure 2-2
shows a typical mounting on actuators with 51 to 102
mm (2- to 4-inch) travel. For actuators with greater
than 102 mm (4-inch) travel, see the guidelines for
mounting a Type DVC6025 remote feedback unit.
While the housing differs on the
DVC6015 and the DVC6010f, feedback
parts are the same.
Refer to the following guidelines when mounting on
sliding-stem actuators with up to 4 inches of travel.
Where a key number is referenced, refer to
figure 11-3.
1. Isolate the control valve from the process line
pressure and release pressure from both sides of the
valve body. Shut off all pressure lines to the actuator,
releasing all pressure from the actuator. Use lock-out
WARNING
Note
Note
