Emerson Fisher Fieldvue DVC6030f Instruction Manual page 312

DVC6000f Series
11
APPLY LUB, SEALANT
NOTES:
SEE FIGURE 11-8 FOR GAUGE CONFIGURATIONS
1
2. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
49B3261-B SHT 1, 2 & 3
29B3403-A
11-6
1

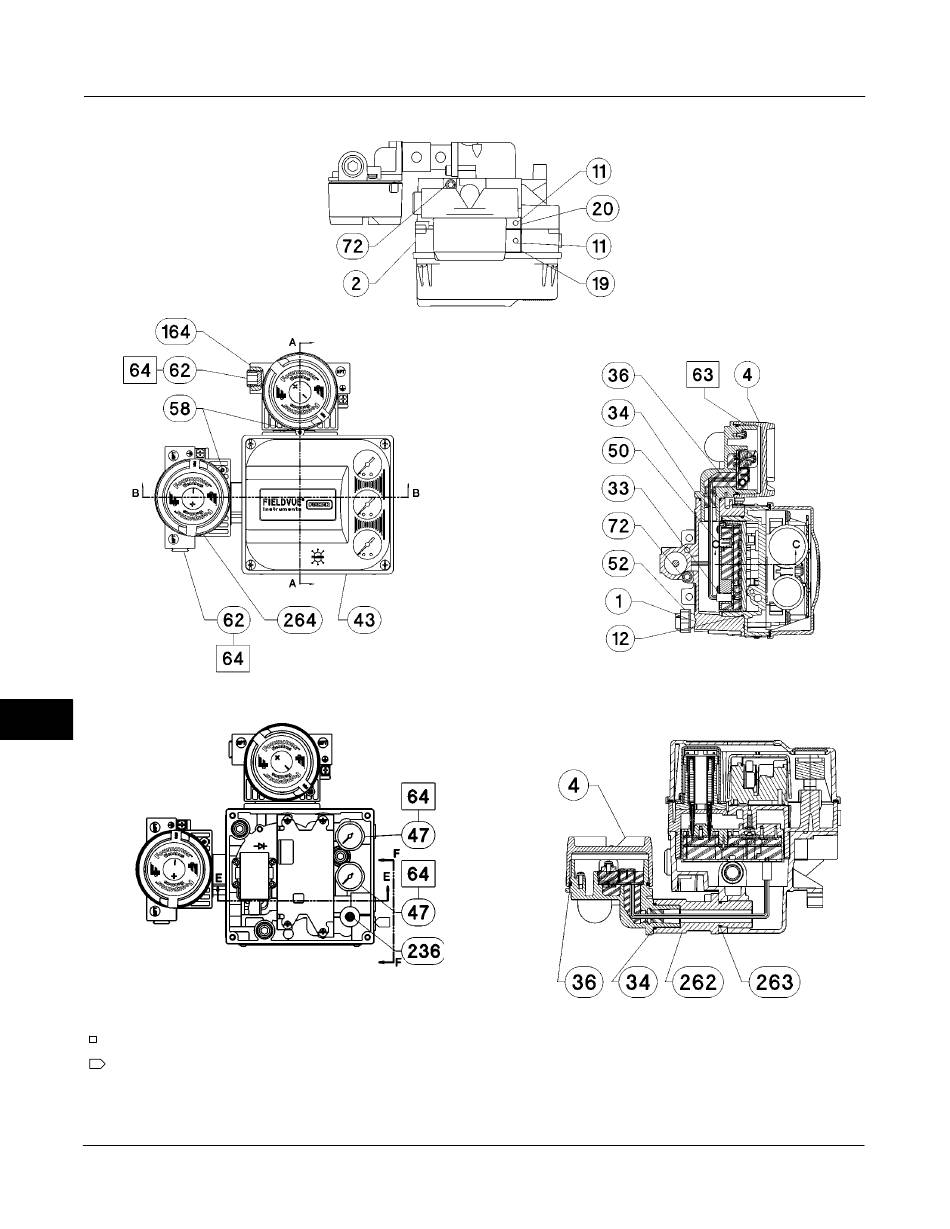

Figure 11-1. Type DVC6005f Base Unit
SECTION A-A
SECTION B-B
March 2006
