PlantWeb Alert Alert Category
and (Group) and (Default)
Travel Sensor User Config.
(Sensors) (Failed)
Output Press
User Config.
Sensor
(Maintenance)
(Sensors)
Supply Press
User Config.
Sensor
(Advisory)
(Sensors)
Temperature
User Config.
Sensor
(Advisory)
(Sensors)
March 2006

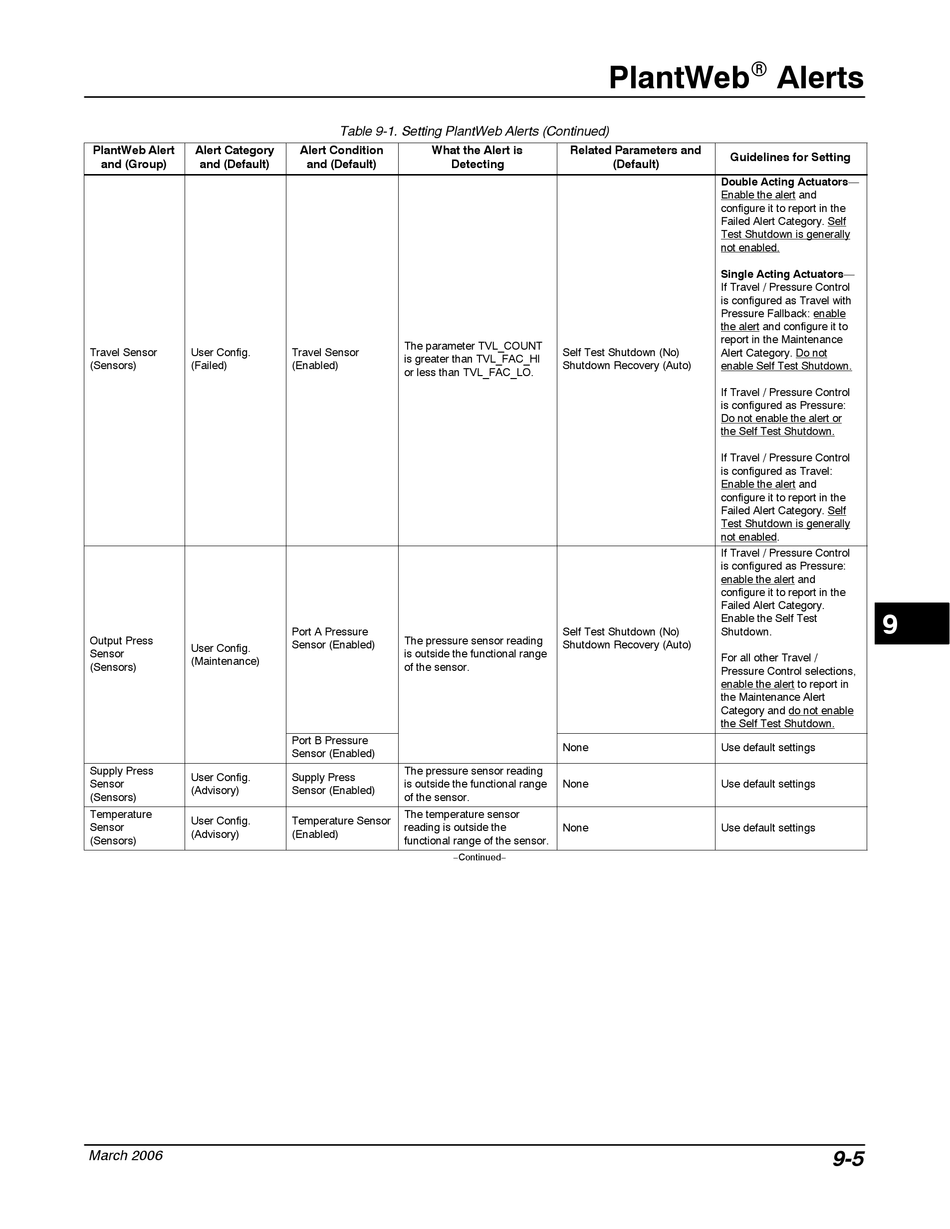

Table 9-1. Setting PlantWeb Alerts (Continued)
Alert Condition What the Alert is
and (Default) Detecting
The parameter TVL_COUNT
Travel Sensor
is greater than TVL_FAC_HI
(Enabled)
or less than TVL_FAC_LO.
Port A Pressure
The pressure sensor reading
Sensor (Enabled)
is outside the functional range
of the sensor.
Port B Pressure
Sensor (Enabled)
The pressure sensor reading
Supply Press
is outside the functional range
Sensor (Enabled)
of the sensor.
The temperature sensor
Temperature Sensor
reading is outside the
(Enabled)
functional range of the sensor.
−Continued−
PlantWeb
Related Parameters and
Guidelines for Setting
(Default)
Double Acting Actuators—
Enable the alert and
configure it to report in the
Failed Alert Category. Self
Test Shutdown is generally
not enabled.
Single Acting Actuators—
If Travel / Pressure Control
is configured as Travel with
Pressure Fallback: enable
the alert and configure it to
report in the Maintenance
Self Test Shutdown (No) Alert Category. Do not
Shutdown Recovery (Auto) enable Self Test Shutdown.
If Travel / Pressure Control
is configured as Pressure:
Do not enable the alert or
the Self Test Shutdown.
If Travel / Pressure Control
is configured as Travel:
Enable the alert and
configure it to report in the
Failed Alert Category. Self
Test Shutdown is generally
not enabled.
If Travel / Pressure Control
is configured as Pressure:
enable the alert and
configure it to report in the
Failed Alert Category.
Enable the Self Test
Self Test Shutdown (No) Shutdown.
Shutdown Recovery (Auto)
For all other Travel /
Pressure Control selections,
enable the alert to report in
the Maintenance Alert
Category and do not enable
the Self Test Shutdown.
None Use default settings
None Use default settings
None Use default settings
