DVC6000f Series
Deadband exceeded,
new Reference Point
established
Deadband Reference
Point
Deadband (+/− 5%)
A6534/IL

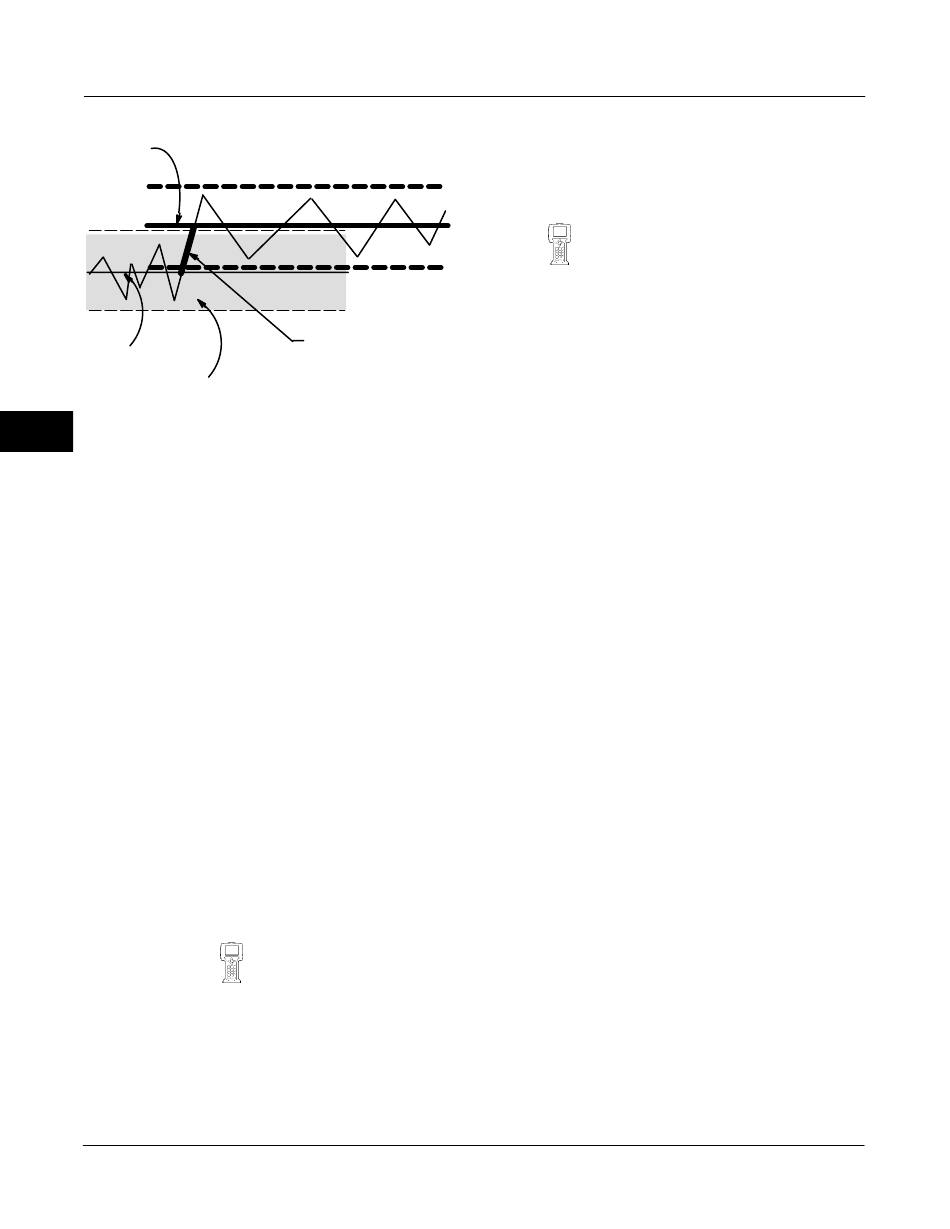

Figure 5-7. Travel Accumulator Deadband (set at 10%)
5
D Tag Description
The Tag Description (TAG_DESC [2]) is a 32
character description used to assign a unique
description to each block within the digital valve
controller to describe the intended application for the
block.
D Relay Type
Enter the type of relay (RELAY_TYPE [42.5]), A or B,
installed in the digital valve controller. Relay A is used
for double-acting and single-acting direct applications.
Relay B is used for single-acting reverse applications.
D Calib Person
Name of the person performing last calibration
(XD_CAL_WHO [31]).
D Calib Location
Indicates the location of the last instrument calibration
(XD_CAL_LOC [29]).
D Calib Date
Enter a date with the format MM/DD/YY. Date is a
user-defined variable that provides a place to save the
date of the last calibration (XD_CAL_DATE [30]).
MAI Channel Map
(TB > Detailed Setup > Instrument > MAI Channel
Map)
D MAI Channel 1 − 8
Allows the user to specify which transducer block
parameter is available through each of the MAI Block
channels (MAI_CHANNEL_1 through
5-36
This amount of change is
added to the Travel
Accumulator.
MAI_CHANNEL_8 [95.1 through 95.8]). See table
5-13 for additional information.

Act and Valve

Valve
(TB > Detailed Setup > Act and Valve > Valve)
D Valve Manufacturer ID
Enter the ID of the manufacturer of the valve
(VALVE_MAN_ID [25]) on which the instrument is
mounted. Select from the drop-down list or enter the
manufacturer's identification number as defined by the
Fieldbus Foundation. For Fisher, the manufacturer ID
hex value is 005100.
D Valve Model Number
Enter the valve model number (VALVE_MODEL_NUM
, (design letter or type number) for the valve on
[26])
which the instrument is mounted.
D Valve Serial Number
Enter the serial number of the valve (VALVE_SN [27])
on which the instrument is mounted.
D Valve Style
Enter the type of valve (VALVE_TYPE [28]),
sliding-stem or rotary, on which the instrument is
mounted.
D Class
Enter the valve pressure class rating (VALVE_CLASS
[83.2]).
D Rated Travel
Enter the valve rated travel (RATED_TRAVEL [83.3])
in inches or mm for sliding stem valves, or in degrees
of rotation for rotary valves.
D Actual Travel
Enter the actual travel (ACTUAL_TRAVEL [83.4]) in
inches or mm for sliding stem valves, or in degrees of
rotation for rotary valves.
D Stem Diameter
Enter the valve stem diameter (SHAFT_STEM_DIA
[83.5]) in inches or millimeters.
D Packing Type
Enter the valve packing construction
(PACKING_TYPE [83.6]).
March 2006
