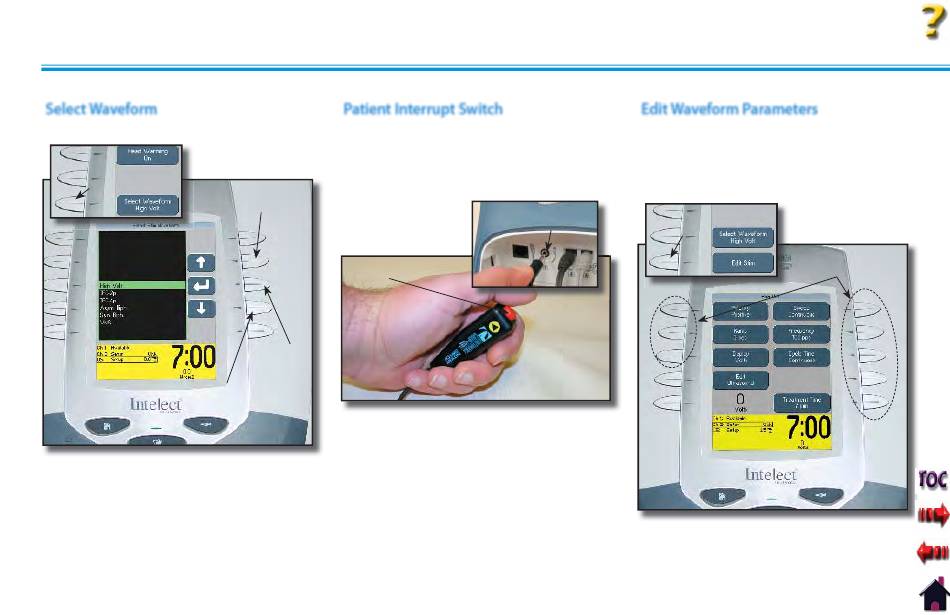

Select Waveform; Patient Interrupt Switch; Edit Waveform Parameters - Chattanooga Intelect Advanced Therapy System Manual

OPERATION
COMBINATION (continued)

Select Waveform

Press the Select Waveform button.
SELECT WAVEFORM
BUTTON
DOWN ARROW
BUTTON
Press the Up or Down Arrow buttons until
the prescribed waveform is highlighted.
Press the Accept and Return Arrow button.

Patient Interrupt Switch

Connect Patient Interrupt Switch to the
Therapy System. Give Patient Interrupt
Switch to patient and explain that pressing
the Red button once pauses the therapy
UP ARROW
session.
BUTTON
PATIENT INTERRUPT
SWITCH
ACCEPT AND
RETUN ARROW
BUTTON
If Patient Interrupt Switch is depressed, the
treatment will be paused and a message
will appear on the System screen.
Press any button to clear the message.
NOTE:
If the Patient Interrupt Switch is depressed
a second time, the message will clear from
the screen and the treatment will remain
paused.

Edit Waveform Parameters

Press the Edit Stim button to edit the
parameters of the waveform selected.
Press the corresponding button to edit
each parameter as prescribed.
CONNECT PATIENT
INTERRUPT SWITCH
59
Intelect® Advanced Therapy System
EDIT STIM
BUTTON
PARAMETER
BUTTONS
