INSTALLATION/REMOVAL
REMOVAL CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

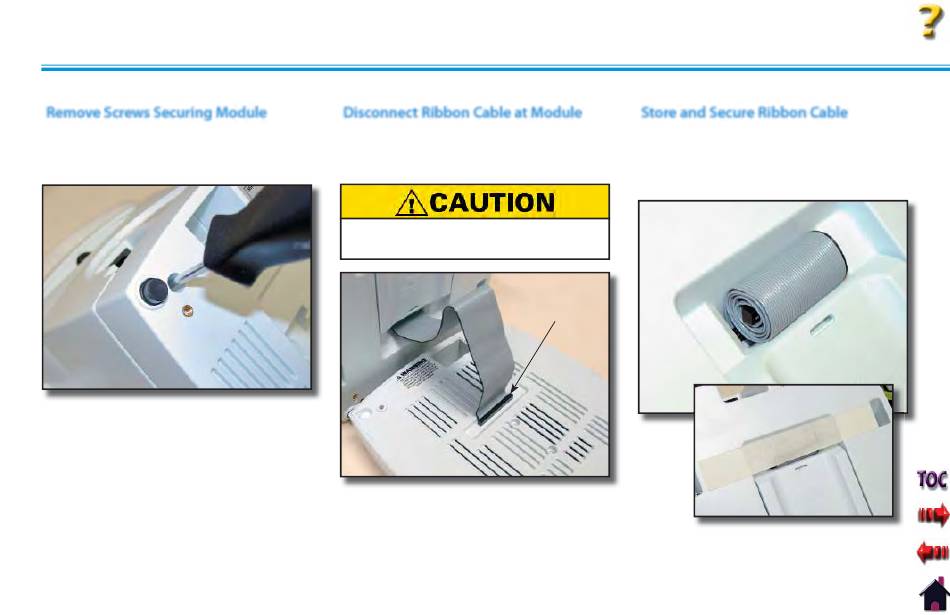

Remove Screws Securing Module

With a #1 Phillips Screwdriver, remove the
four 4 mm x 20 mm screws securing the
Module to the Therapy System.

Disconnect Ribbon Cable at Module

Separate the Module from the Therapy
System and disconnect the Ribbon Cable
from the Module Connector Pins.
Do not disconnect Ribbon Cable from
the Therapy System.
104

Store and Secure Ribbon Cable

Roll the Ribbon Cable up and store in
the cavity of the Therapy System. Secure
Ribbon Cable with a nonpermanent
adhesive tape.
DISCONNECT
RIBBON FROM
MODULE ONLY
