INSTALLATION/REMOVAL
REMOVAL CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

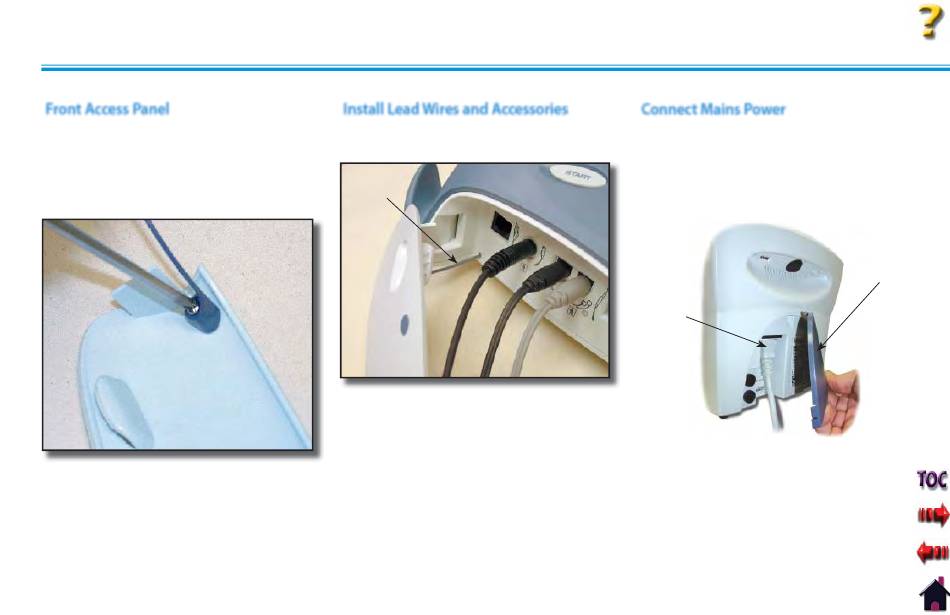

Front Access Panel

With a #1 Phillips Screwdriver, remove the
screw retaining the existing Front Access
Panel.
Install Lanyard to the original Front Access
Panel using the same screw.

Install Lead Wires and Accessories

Re-install Lead Wires and Accessories to the
Therapy System Front Panel.
LANYARD
NOTE:
When re-installing the Front Access Panel
to the Therapy System, make certain the
Lanyard does not become kinked.
105
Intelect® Advanced Therapy System

Connect Mains Power

Connect the Mains Power Cord to the
Therapy System.
Install Rear Access Panel.
Connect the Mains Power Cord to an
approved power source.
MAINS
POWER
CORD
Supplied by EME Services Ltd
REAR
ACCESS
PANEL
