OPERATION OPERATION
CLINICAL RESOURCES LIBRARY MMC GRAPHICAL LIBRARY

General Information

The Clinical Resources Library contains the unique Anatomical and Pathological Graphic Libraries* from Chattanooga Group. These Graphic
Libraries are contained on a single Multimedia Card (MMC) and are designed to aid the operator in visually understanding and locating
specific muscle groups and commonly found problems associated with Pathological Conditions as well as providing an educational tool for
the clinician to use with the patient.

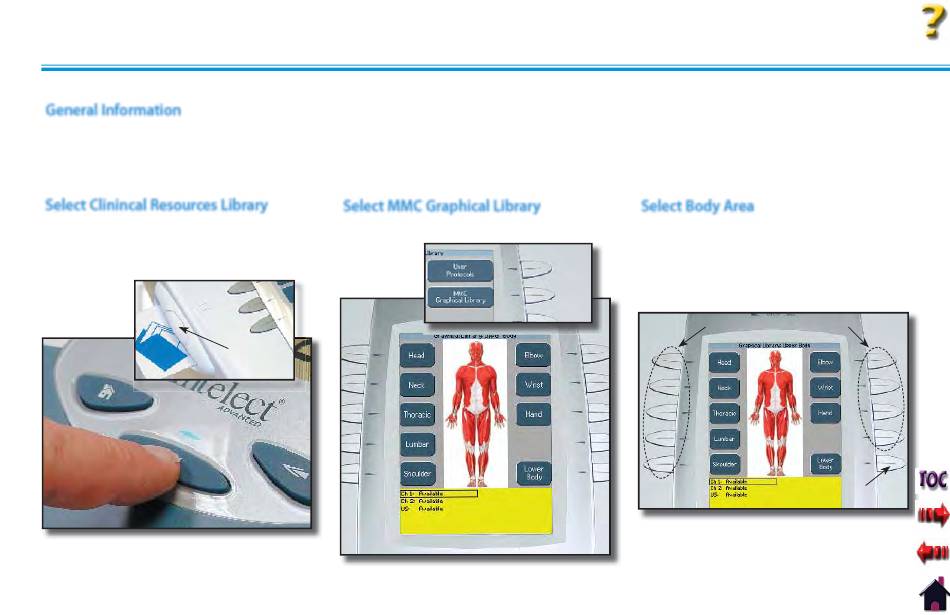

Select Clinincal Resources Library

Make certain the Multimedia Card (MMC) is
inserted into the system MMC Access Port.
Press the Clinical Resources Library button.
MMC
CARD
*Copyright ©2003 Nucleus Medical Art. All rights reserved.
www.nucleusinc.com

Select MMC Graphical Library

Press the MMC Graphical Library button.
93
Intelect® Advanced Therapy System

Select Body Area

The default setting displays Upper Body
Selections. To view Lower Body Selections,
press the Lower Body button.
Press the button beside the desired Body
Area.
BODY AREA SELECTION BUTTONS
LOWER BODY
BUTTON
NOTE:
For representation purposes the Shoulder
has been selected for this section.
