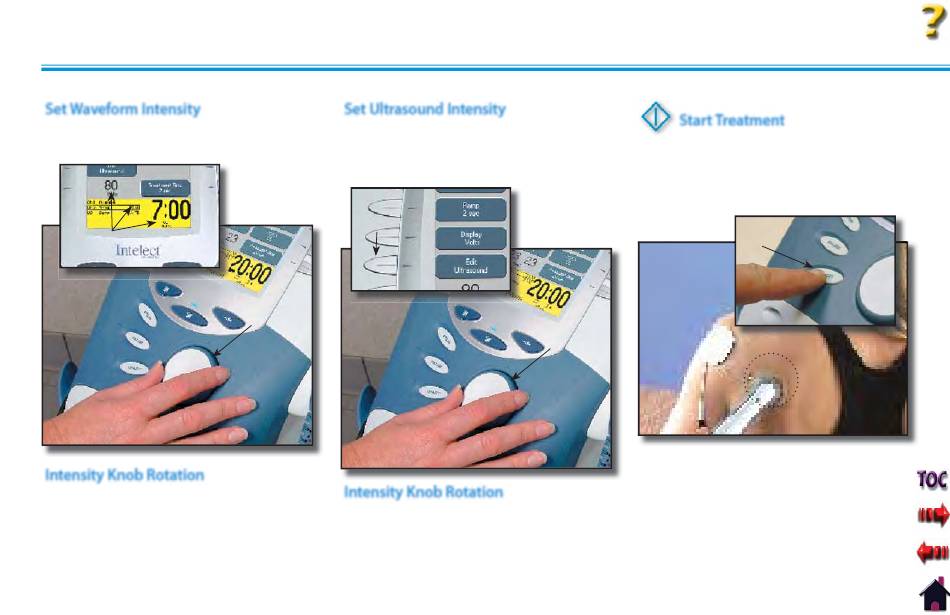

Set Waveform Intensity; Intensity Knob Rotation; Set Ultrasound Intensity; Start Treatment - Chattanooga Intelect Advanced Therapy System Manual

OPERATION
COMBINATION (continued)

Set Waveform Intensity

Set intensity by rotating the Intensity Control
Knob to the prescribed level.
INTENSITY
DISPLAYED

Intensity Knob Rotation

Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity

Set Ultrasound Intensity

Press the Edit Ultrasound button.
Set Ultrasound intensity by rotating the
Intensity Control Knob to the prescribed level.
EDIT
ULTRASOUND
BUTTON
ROTATE
INTENSITY
KNOB
Intensity Knob Rotation
Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity
Press the Start button to begin therapy
session.
Move the Applicator in a circular motion
on the treatment area.
ROTATE
INTENSITY
KNOB
NOTE:
If US Coupling is On and the Sound
Head looses coupling with the treatment
area the session will pause. When
coupling is reestablished, the session will
automatically restart. See page 32 for US
Coupling settings.
60
Intelect® Advanced Therapy System

Start Treatment

START
BUTTON
