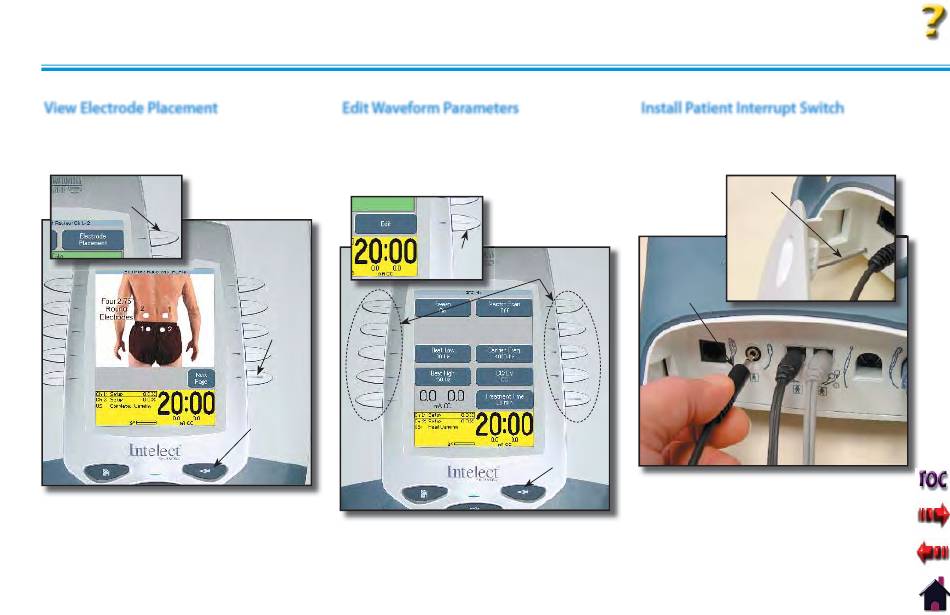

View Electrode Placement; Edit Waveform Parameters; Install Patient Interrupt Switch - Chattanooga Intelect Advanced Therapy System Manual

OPERATION
GENERAL ELECTROTHERAPY WAVEFORM SET UP (continued)

View Electrode Placement

Press the Electrode Placement button to
view the most commonly used electrode
placement for the waveform selected.
ELECTRODE PLACEMENT
BUTTON
Press the Next button to read Electrode
Placement Text. Press the Back button to
return to the Treatment Review screen.

Edit Waveform Parameters

Press Edit button to access waveform
parameters.
Press the corresponding button to edit
each parameter as prescribed.
NEXT
PAGE
BUTTON
BACK
BUTTON
Press the Back button to return to the
Treatment Review screen.
EDIT PARAMETER
BUTTON BUTTONS
BACK
BUTTON
44
Intelect® Advanced Therapy System

Install Patient Interrupt Switch

Make certain the Patient Interrupt Switch is
connected to the Therapy System. Refer to
page 13 for Symbol Definitions.
LANYARD
PATIENT
INTERRUPT
SWITCH
NOTE:
When reinstalling the Front Access Panel,
make certain the Lanyard does not become
kinked.
