OPERATION
ULTRASOUND (continued)

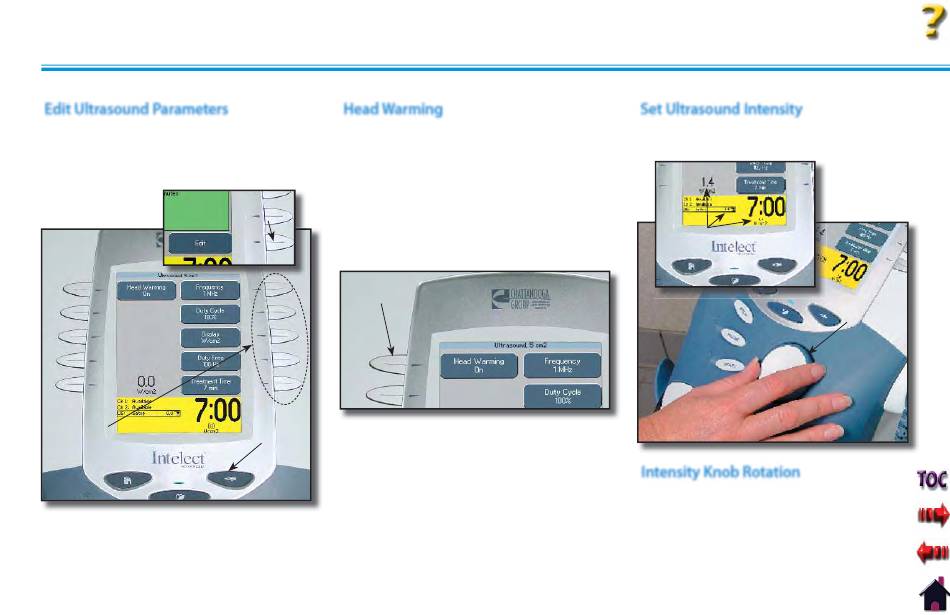

Edit Ultrasound Parameters

Press Edit button to access ultrasound
parameters.
Press the corresponding button to edit as
prescribed.
PARAMETER
BUTTONS
Press the Back button to return to
Treatment Review screen.

Head Warming

The Intelect Advanced Therapy System
incorporates a Head Warming feature that
pre-heats the Sound Head of the Applicator
for increasing patient comfort. The control
for the Head Warming feature is in the Edit
EDIT
screen of the Ultrasound modality.
BUTTON
Press the Head Warming button until On is
displayed.
HEAD WARMING
BUTTON
BACK
To set the default of the Head Warming
BUTTON
feature to On, press the Home button after
On is displayed in the Head Warming icon.
Head Warming will then start when the
Therapy System is turned On.
NOTE:
Head Warming time is approximately 2
minutes.

Set Ultrasound Intensity

Set intensity by rotating the Intensity Control
Knob to the prescribed level.

Intensity Knob Rotation

Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity
49
Intelect® Advanced Therapy System
INTENSITY
DISPLAYED
Supplied by EME Services Ltd
ROTATE
INTENSITY
KNOB
