OPERATION
GENERAL ELECTROTHERAPY WAVEFORM SET UP (continued)

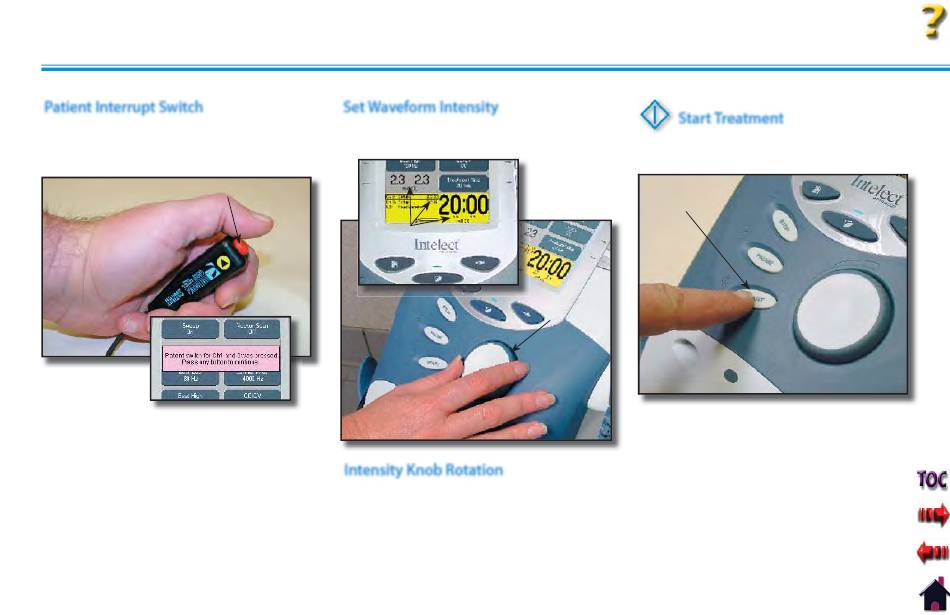

Patient Interrupt Switch

Give Patient Interrupt Switch to patient
and explain that pressing the Red button
once pauses the therapy session.
PRESSING BUTTON ONCE PAUSES SESSION
If Patient Interrupt Switch is depressed, the
treatment will be paused and a message
will appear on the System screen.
Press any button to clear the message.
NOTE:
If the Patient Interrupt Switch is depressed
a second time, the message will clear from
the screen and the treatment will remain
paused.

Set Waveform Intensity

Set intensity by rotating the Intensity Control
Knob to the prescribed level.
INTENSITY
DISPLAYED

Intensity Knob Rotation

Clockwise- Increases Intensity
Counterclockwise- Decreases Intensity
45

Start Treatment

Press the Start button to begin therapy
session.
START
BUTTON
ROTATE
INTENSITY
KNOB
