OPERATION

GENERAL ELECTROTHERAPY WAVEFORM SET UP

The following information is an example of step by step set up for the Electrotherapy waveforms. All waveforms in the Intelect Advanced
Therapy System are set up and edited in the same basic fashion. The following set up instructions use IFC Traditional (4p) Waveform.

Prepare Patient

pages 35 through 38
Refer to
electrode selection, preparing patient, and
securing electrodes.

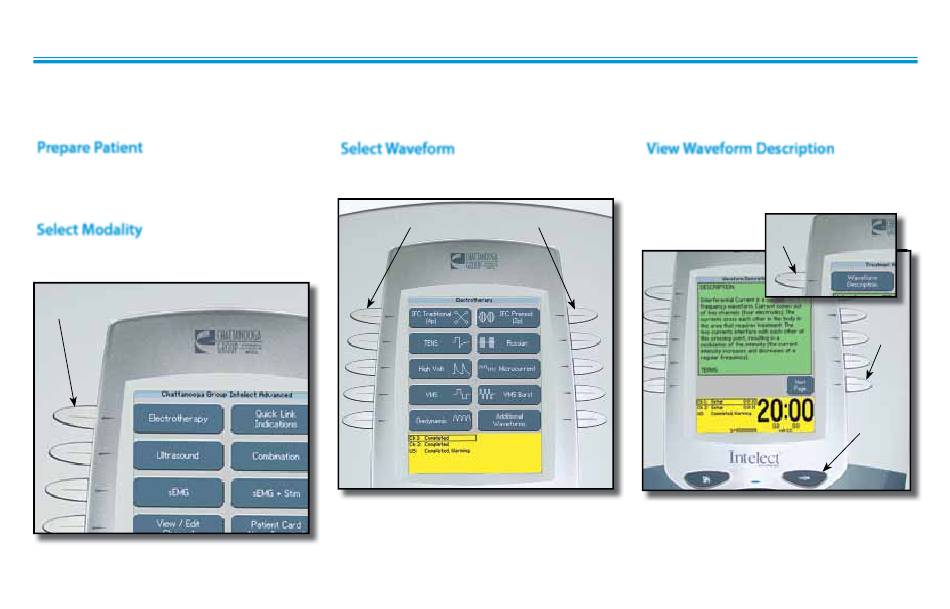

Select Modality

Press the Electrotherapy button on the
Home screen.
ELECTROTHERAPY
BUTTON

Select Waveform

for Press button beside the desired waveform
from the listing on the screen.
PRESS DESIRED WAVEFORM BUTTON
Refer to Specifications section of this
manual for all available waveforms on the
Intelect Advanced Therapy System.

View Waveform Description

Press the Waveform Description button
to view text explaining the waveform
rationale.
Press the Next Page button to view
additional text. Press the Back button to
return to the Treatment Review screen.
43
Intelect® Advanced Therapy System
WAVEFORM DESCRIPTION
BUTTON
NEXT
PAGE
BUTTON
BACK
BUTTON
