Editing Ultrasound From Home Screen; Editing Ultrasound From Treatment Review Screen - Chattanooga Intelect Advanced Therapy System Manual

OPERATION
ADJUSTING ULTRASOUND PARAMETERS DURING TREATMENT
The ultrasound parameters may be changed during a treatment session without pausing or stopping the treatment. The following
information provides instructions for changing ultrasound treatment parameters during a treatment session. The ultrasound intensity may be
increased or decreased at any time during the session without utilizing this process.

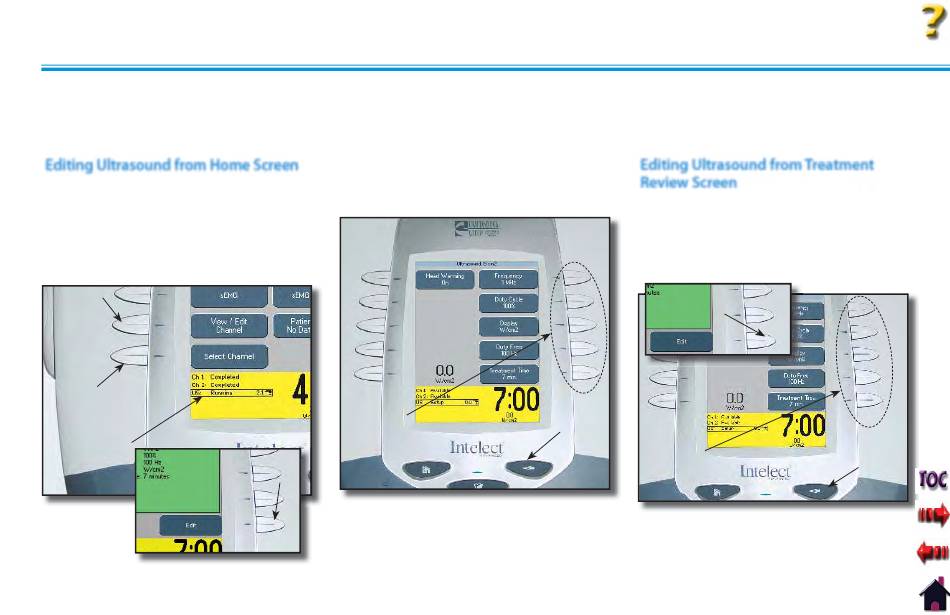

Editing Ultrasound from Home Screen

Press Select Channel button until US:
Running is framed.
Press View/Edit Channel button.
Press the Edit button on the Treatment
Review screen.
VIEW/EDIT
CHANNEL
BUTTON
SELECT
CHANNEL
BUTTON
US: RUNNING
FRAMED
Press the cooresponding parameter
button and edit as prescribed.
PARAMETER
BUTTONS
EDIT
BUTTON
When editing is complete, press the Back
button to return to Treatment Review
screen
Editing Ultrasound from Treatment
Review Screen
Press the Edit button on the Treatment
Review screen.
Press the cooresponding parameter
button and edit as prescribed.
BACK
BUTTON
When editing is complete, press the Back
button to return to Treatment Review
screen.
51
Intelect® Advanced Therapy System
EDIT
BUTTON
PARAMETER
BUTTONS
