Select Location Of Pain; Editing Pain Locations - Chattanooga Intelect Advanced Therapy System Manual

OPERATION
PATIENT DATA CARD SET UP OF NEW CARD (continued)

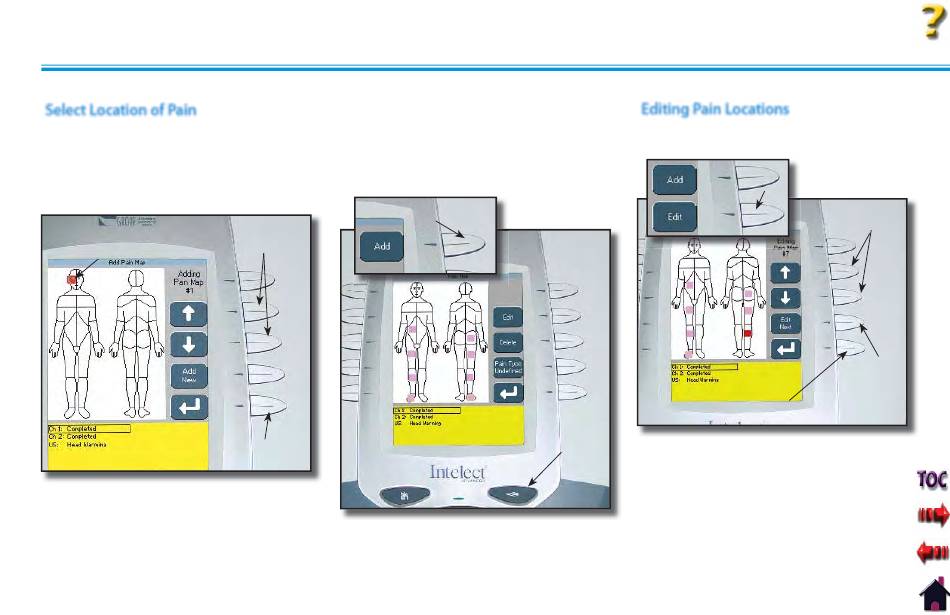

Select Location of Pain

Press the Up and Down Arrow buttons to
move the Pain Locator to the area of the
body where the pain originates.
Press the Accept and Return Arrow button.
The Pain Map window will display.
PAIN
LOCATOR
ACCEPT AND RETURN
Press the Add button to continue selecting,
in sequence, the radiating path of the pain
using the above procedure.
Up to eight pain locations may be selected.
BUTTON
UP AND DOWN
ARROW BUTTONS
ARROW BUTTON
After all desired Pain Locations have been
made, press the Back button.
ADD
BACK
BUTTON
67
Intelect® Advanced Therapy System

Editing Pain Locations

Press the Edit button on the Pain Map
window.
EDIT
BUTTON
ACCEPT AND RETURN
ARROW BUTTON
Press the Edit Next button to highlight the
Pain Location to be edited.
Use the Up and Down Arrow buttons to
relocate the selected Pain Location.
Press the Accept and Return Arrow button.
Repeat until all editing is complete, then
press the Back button.
