SPECIFICATIONS

SYSTEM SPECIFICATIONS

HEIGHT
DEPTH
NOTE:
All waveforms except High Voltage Pulsed Current (HVPC) have been
designed with a 200mA current limit.
VMS™, VMS™ Burst and all TENS waveform output intensities are
measured, specified and listed to peak, not peak to peak.

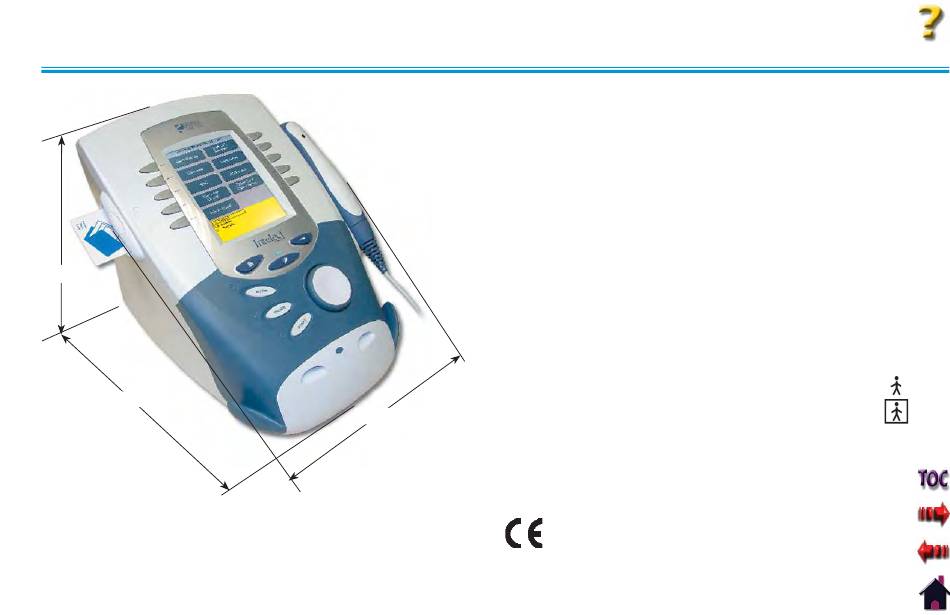

DIMENSIONS

Width

Combination System . . . . . . . . . . . . . . . . . . . . . . . . . . 28.9 cm (11.375")
Electrotherapy System . . . . . . . . . . . . . . . . . . . . . . . . . . . 24.8 cm (9.750")
Depth (Combination and Electrotherapy System) 32.4 cm (12.750")
Height (Combination and Electrotherapy System) . 22.2 cm (8.750")

Standard Weight

Two Channel Combination System . . . . . . . . . . . . . . . . . 3.2 kg (7 lbs)
Two Channel Electrotherapy System . . . . . . . . . . . . . . . . 2.7 kg (6 lbs)

Power (Combination and Electrotherapy Units)

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 240 V - 1.0 A, 50/60 Hz
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +12 V, 8.3 A
Fuses . . . . . . . . . . . . . . . . . . . . . Two 6.3A Time Lag (Part Number 71772)
Electrical Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .CLASS I

Electrical Type

Ultrasound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TYPE B
Electrotherapy and sEMG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TYPE BF
WIDTH
Regulatory Compliance
0 4 1 3
15
UL/IEC/EN 60601-1
IEC/EN 60601-1-2
IEC 60601-2-5
IEC 60601-2-10
