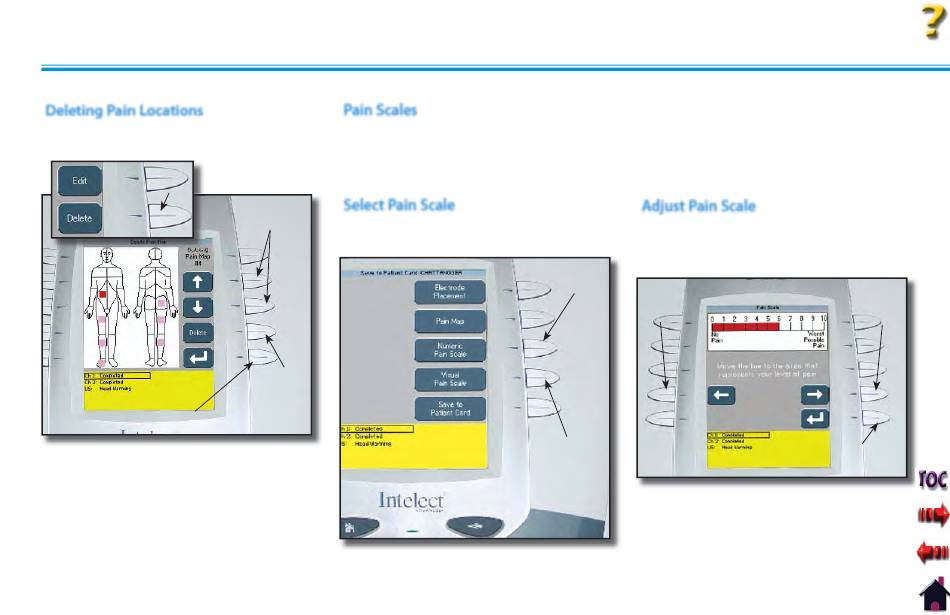

Deleting Pain Locations

Press the Delete button on the Pain Map
window
DELETE
BUTTON
ARROW BUTTONS
ACCEPT AND RETURN
ARROW BUTTON
Use the Up and Down Arrow buttons to
highlight the Pain Location to be deleted.
Press the Delete button.
Press the Accept and Return Arrow button.
Repeat until all editing is complete, then
press the Back button.

Pain Scales

The Intelect Advanced Therapy System incorporates two internationally recognized Pain
Scales; VAS Visual Analog Scale, Scale has no indicator marks or Numeric (indicated 1
through 10) for use in describing the amount of pain the patient is experiencing. Once one
of the pain scales is set, the other will automatically set to the corresponding level.

Select Pain Scale

UP AND DOWN
Select the desired Pain Scale by pressing the
corresponding button.
DELETE
BUTTON

Adjust Pain Scale

Press the Left and Right Arrow buttons to
adjust the Pain Scale to the level the patient
is experiencing.
NUMERIC PAIN
SCALE BUTTON
BUTTON
VISUAL PAIN
SCALE BUTTON
After the desired level is achieved, press the
Accept and Return Arrow button.
NOTE:
Numeric Pain Scale illustrated.
68
Intelect® Advanced Therapy System
LEFT
ARROW
ACCEPT AND RETURN
ARROW BUTTON
