OPERATION
PATIENT DATA CARD SET UP OF NEW CARD (continued)

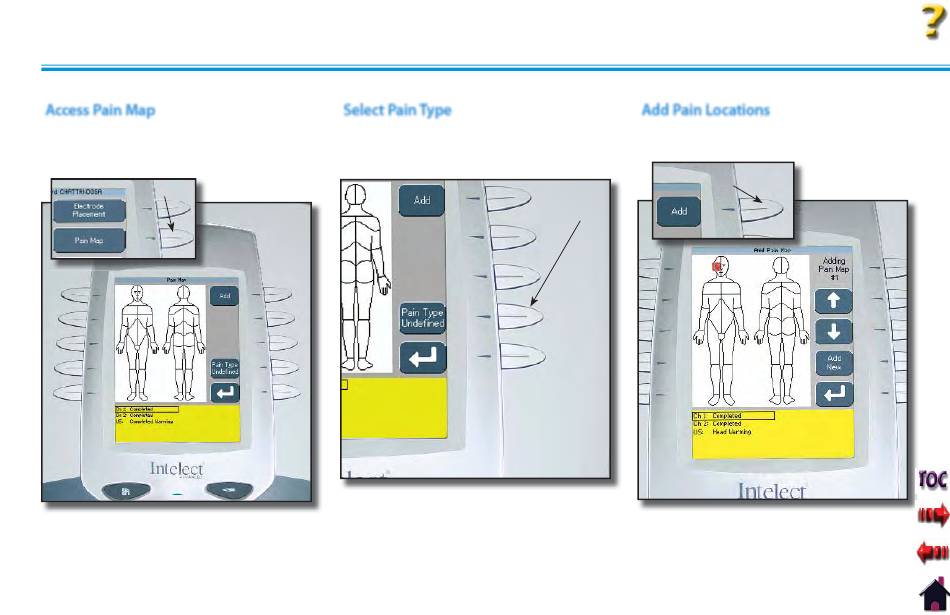

Access Pain Map

Press the Pain Map button to select
the body area of the associated pain as
described by the patient.
PAIN MAP BUTTON

Select Pain Type

Press the Pain Type button until the
desired description is displayed in the Pain
Type icon.
66

Add Pain Locations

Press the Add button. The Add Pain Map
window will display.
ADD
BUTTON
PAIN TYPE
BUTTON
