INSTALLATION/REMOVAL
INSTALLATION CHANNEL 3/4 ELECTROTHERAPY MODULE (continued)

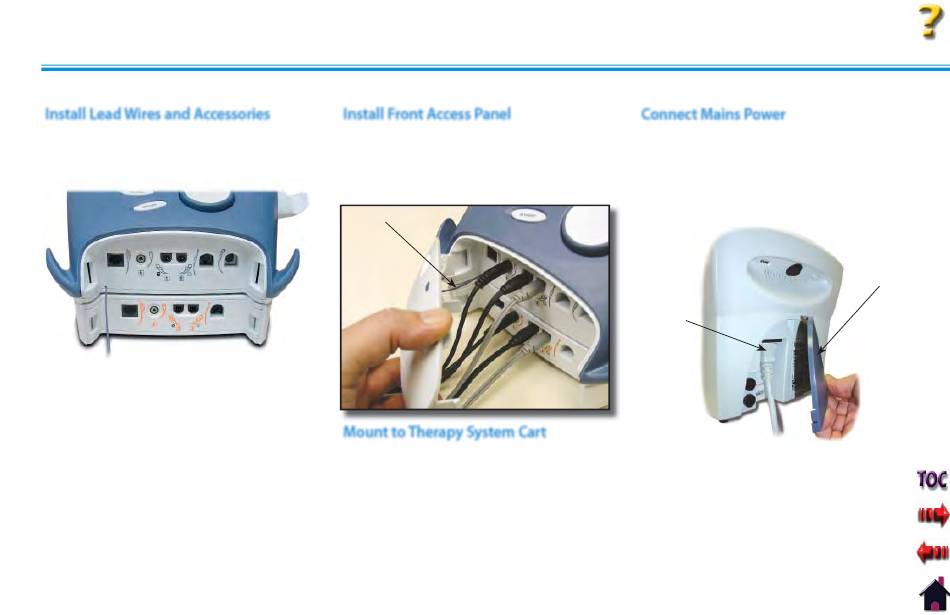

Install Lead Wires and Accessories

Install Lead Wires and additional accessories
to Front Panel. Refer to page 13 for Symbol
Definitions.

Install Front Access Panel

Install the new Extended Front Access Panel
onto Therapy System.
Make certain Lanyard does not become
kinked.
LANYARD

Mount to Therapy System Cart

If mounting Therapy System to a Therapy
System Cart, refer to Therapy System Cart
User Manual for instructions.
101
Intelect® Advanced Therapy System

Connect Mains Power

Connect the Mains Power Cord to the
Therapy System.
Install Rear Access Panel.
Connect the Mains Power Cord to an
approved power source.
MAINS
POWER
CORD
Supplied by EME Services Ltd
REAR
ACCESS
PANEL
